Instant chilled water drinking fountains

This water chiller provides instant chilled drinking water at your fingertips. Cost effective solution to buying and storing bottled water. Delivers refreshingly chilled water between 5°C and 10°C.Chiller system stored out-of-sight under the bench top.

The three water chilling systems share the same basic cooling mechanism which are as follows:

  • COMPRESSOR – Hermetically sealed reciprocating type. 0.25 HP. 220v AC 50 Hz single phase.
  • CONDENSER  – Fan cooled copper and aluminum finned type.
  • EVAPORATOR – Sealed copper tank. Storage capacity 2.0 litres cooled by copper
  • ELECTRICAL CONNECTIONS – Insulated power cable, 2 metre long, with three prong moulded plug.
  • TEMPERATURE CONTROL – Enclosed preset thermostat. Easy accessibility by removing front panel
  • REFRIGERANT REFRIGERANT CONTROL – Capillary tube control. No moving parts
  • REFRIGERANT – Refrigerant type R134 A
  • TOP – Satin finish 304 stainless steel top.
  • BASE – 1,2 mm Heavy gauge galvanized steel.



ZIP ChillTap

The under counter, chilled water fountain, convenient snap action lever tap supplies chilled water in offices, schools, factories and at home neatly stowed away but always on tap. The water chiller dispenses 42 litres of chilled water per hour at a constant 11°C. The under counter cabinet is manufactured from 0,7 mm white epoxy coated electro- galvanized mild steel. Filter and stainless steel counter bowl option.

ModelOrder codeProduct code (New / Old)Price (Incl. VAT)
Zip ChillTapF-CHILLTAP2610027 / 380051 R 14 731.49
Hard water purification kitF-23302762330276 / 480962R 4 117.00
Spare filtersF-23302742330274 / 480960R 1 978.00
Zip Global Plus Filter Head plus flexi-hoses:F-23302752330275R 1 322.50

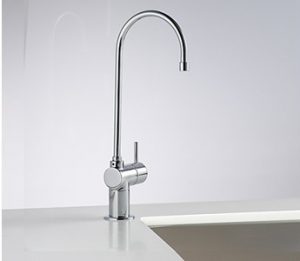

chilltap zip chilled water dispenser kitchen deck mounted

F-CHILLTAP
Chilltap with instant chilled water

Zip Chill Tap

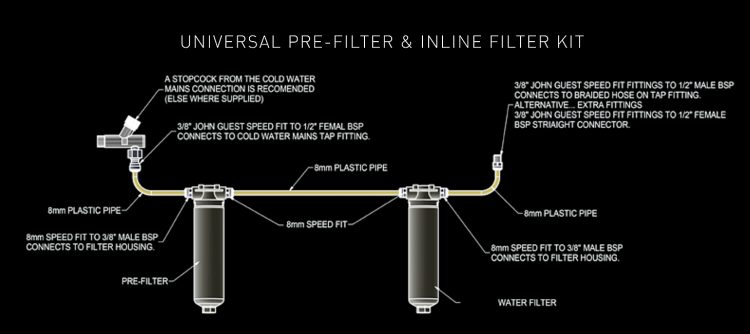

zip-chill-tap-system-diagram

ZIP Chillmaster in stainless steel drinking fountain

Pure filtered chilled water. The exclusive activated carbon filter of the Zip Chillmaster removes chlorine, odours and organic growths from the water and delivers pure, hygienic spring water at a rate of 42 litres per hour at a constant 11°C. The Zip Chillmaster delivers its cold water by bubbler and carafe spout.Zip Chillmaster cabinets are manufactured from 0,7 mm grade 304 stainless steel. Plumbed in directly to cold water inlet.

Zip Chillmaster comes in two configurations: In stainless steel and epoxy white.

ModelOrder codeProduct code (New / Old)Price (Incl. VAT)
Zip Chillmaster with filterF-CHILMASTR2610026 / 380050 R 20 458.48
Zip Chillmaster no filterF-CHILMASTR-NF2610025 / 380049 R 18 756.48
Zip Filter cartridge for ChillmasterF-23302882330288 / 490109 R 1 012.00
Economaster (White Epoxy) F-ECONOMASTER2610028 / 380052R 17 491.48
Zip chillmaster system

F-CHILLMASTER
F-CHILLMASTER-NF

chillmaster-diagram

ZIP Economaster in epoxy white drinking fountain

The Zip Economaster economical thirst quencher. The Zip Economaster’s Tough, 0,7 mm white epoxy powder coated, electro- galvanised mild steel provides a durable exterior to this unit. The Zip Economaster provides a steady stream of sheer, refreshing, chilled water and is dispensed at a delivery rate of 42 litres per hour at 11°C. The Zip Economaster’s Factory- fitted filter optional. The Zip Economaster is a cost effective water chiller, fitted with bubbler and carafe spout. Plumbed in directly to a cold water inlet.

  • Product Code: Old: #380052 New: #2610028
  • Zip Economaster (White): R 17 491.48 Incl. VAT
  • Order code: F-ECONOMASTER
Zip economaster chilled water fountain 2610028 42L

F-ECONOMASTER
R 17 491.48 Incl. VAT

ZIP Wall mounted Chillmaster – drinking fountain

Features

  • For commercial use.
  • Chiller cabinets are manufactured from 0.7mm grade 304 Stainless Steel
  • Plumbed directly into cold water inlet and waste systems, a steady stream of sheer, refreshing, chilled water is dispensed at a delivery rate of 42 litres per hour at a temperature of between 8 – 12 ° Celcius.
  • Factory fitted with a bubbler and carafe spout.
  • The exclusive Zip activated carbon filter removes chlorine,odors and organic growths from the water and delivers pure, hygienic water.
  • Filter cartridges are as quick, simple and hygienic to change as a light bulb.
Wall mounted water chiller drinking fountain

Wall mounted chiller drinking fountain
#380047 / #2610024
Order code: F-CHILLMASTR-WM
R 17 939.98

General Specifications

  • Compressor: Hermetically sealed reciprocating type HP 220V AC, 580 Hz phase.
  • Condenser: Fan Cooled copper and aluminium finned type
  • Evaporator: Sealed copper tank, Storage capacity 2.0 litres cooled by copper coil inside
  • Electrical Connections: Insulated power cable, 2 metres long, with three rong 15 Amp moulded plug
  • Water Supply: Min 140 kPa – Max 400 kPa
  • Refrigerant: Refridgerant Type R134a – Environmentally Friendly
  • Refrigerant Control: Capillary tube control. No moving parts
  • Temperature Control: Enclosed preset thermostat. Easy accessibility by removing front panel
  • Top: Grade 304 satin finish Stainless Steel top
  • Base: 1.6 mm Heavy gauge galvanized Steel

Industrial drinking fountains without chilled water

Below are industrial type drinking fountains that use ambient water. Use the WC-109 drinking fountain bubbler to supply water to users.

Stainless steel drinking fountain without taps or plumbing

F-DF
Stainless steel drinking fountain body. No chilled water.

KFC BRC390CF stainless steel wall mounted hand wash basin

F-RONDO-WM
Stainless steel wall mounted drinking fountain – tap optional
