Multi-bowl hand wash basins in stainless steel

The multi-bowl hand wash basin range are ideal for commercial and industrial applications such as factories, warehouses, sports arenas, public ablutions, schools, hospitals, clinics and academic institutions.

Multi-bowl basin range specifications :

Model WB002, WB003, WB004, & WB005 range of wash hand basins are all derived from the single WB001 unit. Units manufactured in Grade 304 (18/10) Stainless Steel, 0,9 mm gauge with 25 mm splashback and tiling key. Unit to include pressed bowls, 406 x 300 x 140 mm deep with a 40 mm waste outlets. Basin to be supplied with gallows brackets OR gallows brackets and front legs with adjustable foot piece (optional, please specify). Brackets to be fixed to the wall with anchor bolts (bolts elsewhere measured)

Optional extras:

  • Order as inset only with no feet or brackets
  • Wall mounted only with gallows brackets
  • Gallows brackets and front legs Stainless Steel

Features :

  • Grade 304 (18/10) Stainless Steel
  • Hygienic and vandal resistant
  • With or without splashback and tiling key
  • Basin with pressed bowls
  • Semi-pierced tap holes and soap recesses

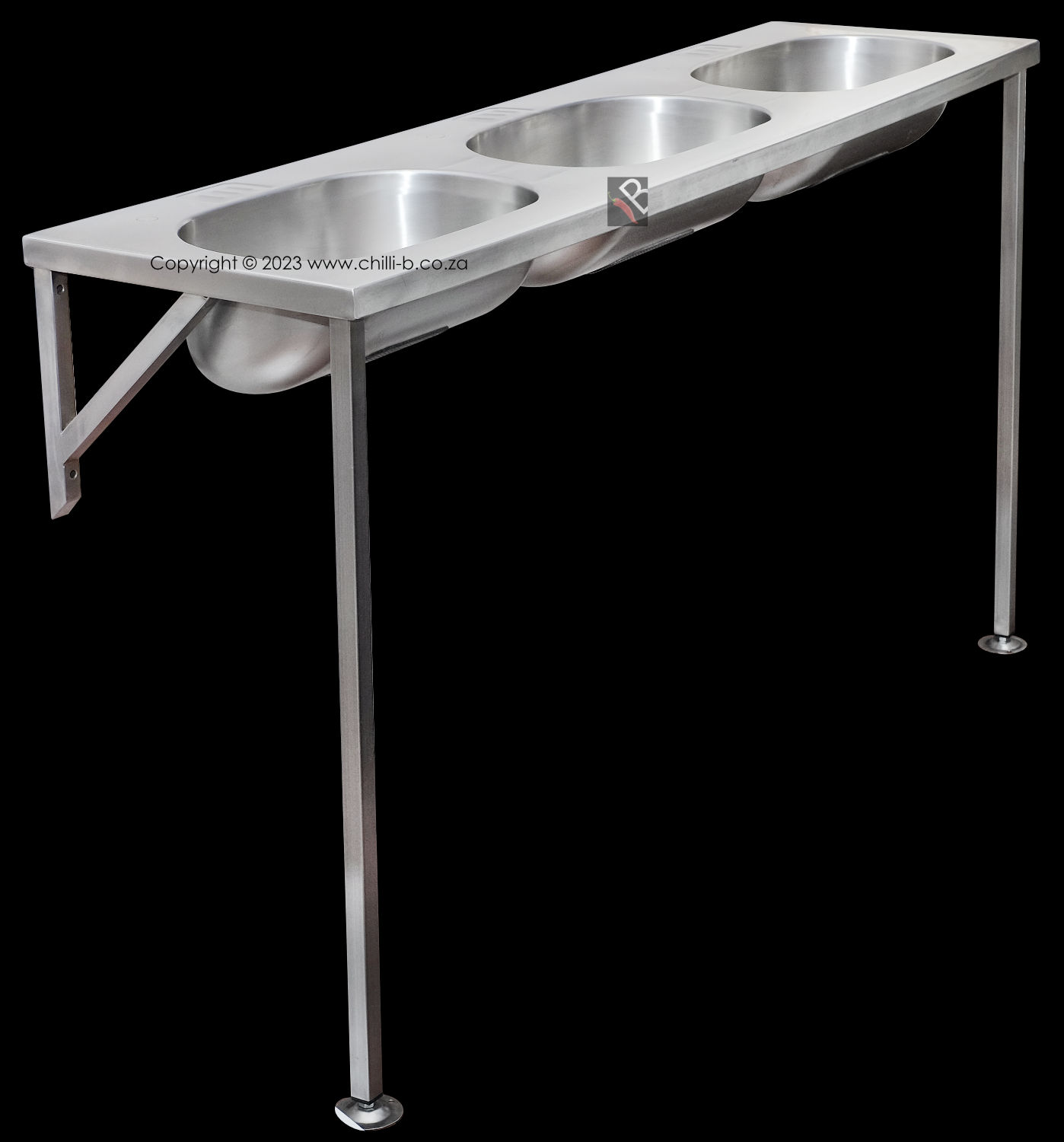

industrial washroom 3 bay basin WB003 franke 2520033 359352
SS-WB003-GBFF
Three bay wall mounted basin with gallows brackets and two front feet.

Model WB002 two bowl stainless steel hand wash basin

WB001 double wall hung basin

WB001 double wall hung basin measurements

Model WB003 three bowl stainless steel hand wash basin

Once piece three bowl basin unit made from stainless steel

WB003 three bowl basin unit diagram

Model WB004 four bowl stainless steel hand wash basin

WB004 wall mounted four basin unit Four bowl basin diagram

Model WB005 five bowl stainless steel hand wash basin

Five bowl once piece stainless steel basin WB005 multi-bowl basin system
