Combination bedpan & wash-up sluice sink

The Franke Model EC Combination bedpan and wash-up sluice sink is manufactured from grade 304 (18/10 stainless steel with a thickness of 1.6mm. The draining board and bowls are 1, 2 mm thick. The combination bedpan and wash-up sink unit comes with a 150 mm high integral splash back to the rear and 15 mm deep hospital beading on the top surface. There is a 100 mm apron to front and sides. The hospital sink unit is fitted with two pressed seamless bowls with the sluice bowl having an integral flushing rim and a 38 mm diameter inlet pipe for the flush valve. The flush valve is included and cannot be ordered separately. The waste outlet on the sluice bowl is 110 mm and the rinse bowl size is 610 x 460 x 230 mm deep with a 40 mm waste outlet. The underside of the combination bedpan and wash-up sink is sprayed with vermin proof bitumastic sound deadening compound and has a galvanized mild steel backing sheet.

Specification (With flush valve)

The EC Combination bedpan and wash-up sluice sink is supplied complete with a factory fitted Cobra FM 1.00 flush valve, 35 mm water supply through 50 mm sleeve on unit, P171/041 pillar mixer with over- arm swivel spout, CP297 pillar mixer with retractable hand spray, 15 mm bedpan spray nozzle, 15 mm bottle spray nozzle (both nozzles activated by two 15 mm quarter turn elbow action valves). Please refer to fixing table below for fixing options. Unit is plumbed at factory and is supplied complete with fittings. NOTE: you cannot add your own flushing fittings as it is factory fitted.

Specification for EC Unit (With High Level Cistern)

This unit supplied complete with a 11 liters stainless steel high level cistern fitted with a Supa Flush Valve and pull chain, 41 mm diameter stainless steel flush pipe and 41 chrome plated coupling which is reduced on one end to fit the 38 mm connection. Unit is plumbed at factory and is supplied complete with fittings.

EC Combination models
Order codeProduct codeDimensionsBowl PositionFlush System
EC6-FLV-LHB350050 /1830 x 685 mmLeft HandFlush Valve
EC6-FLV-RHB350052 /1830 x 685 mmRight HandFlush Valve
EC6-HLC-RHB350054 /1830 x 685 mmRight HandHigh Level Cistern

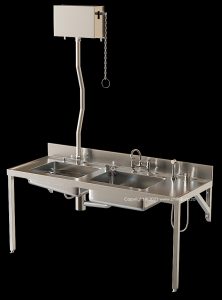

EC6-HLC-LHB350056 /1830 x 685 mmLeft handHigh Level Cistern
EC7-FLV-LHB350100 /2135 x 685 mmLeft HandFlush Valve
EC7-FLV-RHB350102 /2135 x 685 mmRight HandFlush Valve

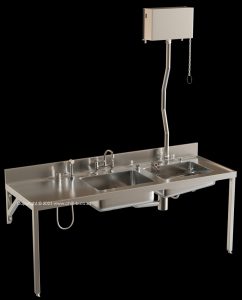

EC7-HLC-RHB350104 /2135 x 685 mmRight HandHigh Level Cistern

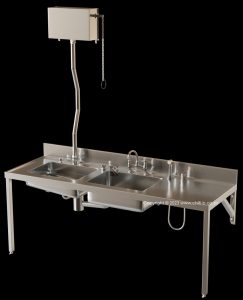

EC7-HLC-LHB350106 /2135 x 685 mmLeft handHigh Level Cistern

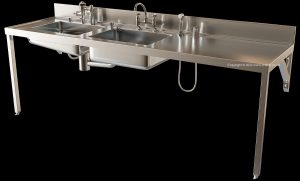

EC8-FLV-LHB350150 /2440 x 685 mmLeft HandFlush Valve
EC8-FLV-RHB350152 /2440 x 685 mmRight HandFlush Valve
EC8-HLC-RHB350154 /2440 x 685 mmRight HandHigh Level Cistern

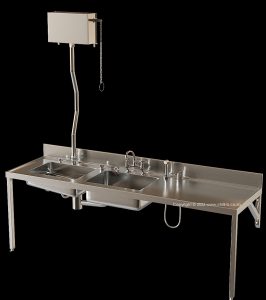

EC8-HLC-LHB350156 /2440 x 685 mmLeft handHigh Level Cistern
ec combination sluice bedpan washer franke 2630001 350050

EC6-FLV-RHB
Combination bedpan washup sluice sink with flush valve.

350052 Combination bedpan & wash-up sluice sink 2630002

EC6-FLV-LHB
Combination bedpan washup sluice sink with flush valve.

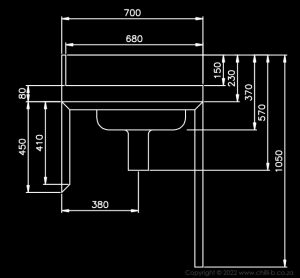

EC Combination bedpan and wash-up sink diagram

EC Combination bedpan and wash-up sink front view. Widths vary from 1850 – 2440 mm

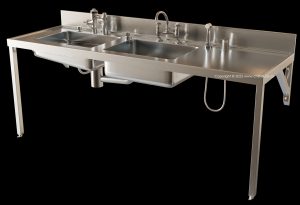

EC Combination bedpan and wash up sink
EC6 sluice sink combination

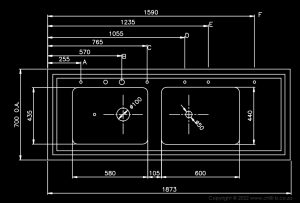

Top view of the EC Combination bedpan and sluice sink.

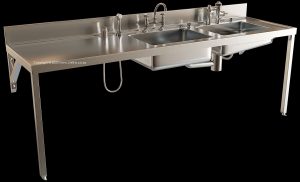

Sluice sink combo with right hand bowls and flush valve. Above right is the bedpan bottle rack BR6.

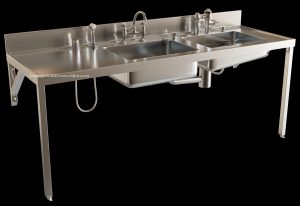

Combination bedpan and Sluice sink combo with right hand bowls and flush valve. Above right is the bedpan bottle rack BR6.

EC Combination bedpan and wash-up sink diagram

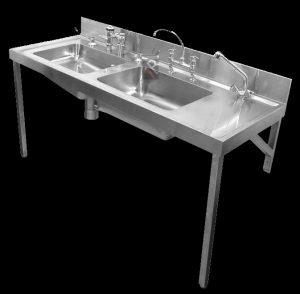

Sluice sink combo EC6 right hand with flush valve complete.

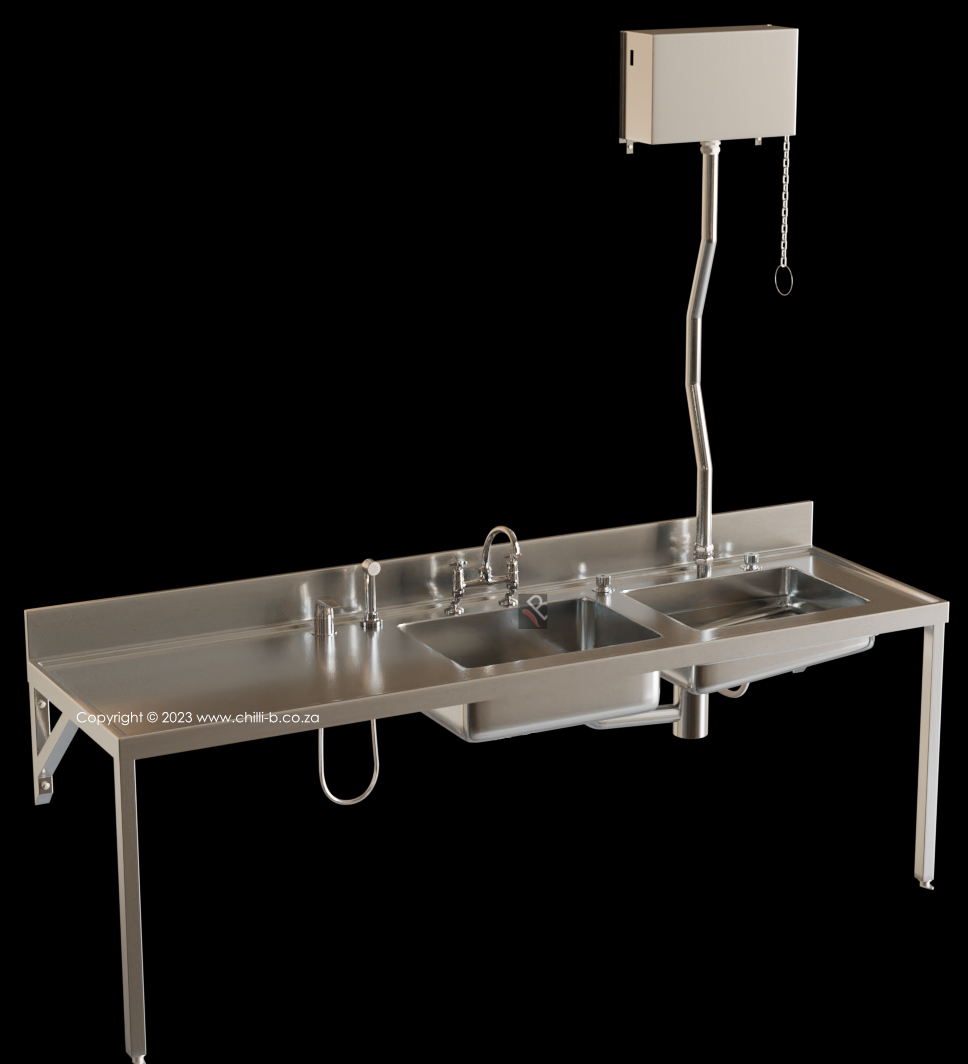

Sluice sink combo with high level cistern. Left hand bowls

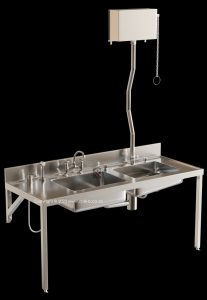

Sluice bedpan sink combo with high level cistern.

Sluice sink combo 1850 mm with small 150 mm stainless steel splashback to increase hygiene. This system uses a high level cistern on the left bowl

Bepdan Sluice sink combo 1850 mm with added stainless steel splash back to the right.

EC Bedpan Combo sluice sink wall and floor fixing options

Gallows bracket with removable front leg for catering sink and tables

Gallows bracket with removable front leg
355100 / 2120035



Cantilever bracket for catering sinks and tables

Cantilever bracket
355102 / 2120036

Specification of fixing options

Stainless Steel Round legs: Round Legs manufactured from grade 304(18/10) stainless steel 41 mm diameter x 1,2 mm thick round tubing. Legs to be detachable and fitted with chrome plated adjustable flanged foot pieces.

Stainless Steel Square legs: Square Legs manufactured from grade 304(18/10) stainless steel 40 x 40 mm x 1,2 mm thick square tubing. Legs to be detachable and fitted with chrome plated adjustable flanged foot pieces.

Stainless Steel Gallows Brackets with Front Leg: Gallows Brackets with Front Legs manufactured from grade 304(18/10) stainless steel 40 x 40 mm x 1,2 mm thick square tubing. The front leg is detachable and is fitted with chrome plated adjustable flanged foot pieces.

Stainless Steel Cantilever Brackets: Cantilever Brackets are manufactured from grade 304(18/10) stainless steel, 40 x 40 mm and 1,2 mm thick square tubing. *These brackets are used in areas where the floors have covered skirting and the design makes cleaning under the unit very easy.

Fixing options for hospital sluice sinks and sluice sink combos
Product codeMethodQty requiredComments
355100 / 212003540 x 40 mm square gallows bracket with detachable front leg 1 pairunits 2400 mm and longer require additional bracket and leg
355102 / 212003640 x 40 mm cantilever bracket1 pairunits 2400 mm and longer require additional brackets
