Oval A wall mount hand wash basin

Oval A basin specification

Franke Model Oval A Wash Hand Basins, 420 x 340 x 185 mm deep. Manufactured from Grade 304 (18/10) Stainless Steel, 1,2 mm gauge. Unit to include a one piece pressed bowl, 360 x 280 x 130 mm deep with a 40 mm waste outlet, with a 50 mm splashback and 100 mm rounded apron. Basin to be fixed to the wall with 4 x 6 mm anchor bolts (bolts elsewhere measured).

Alternative basin to the Oval A is the Oval KA. It has slightly deeper and narrower bowl.

  • Product code: 2520029 / 357456
  • Order code: FR-OVAL-A

Features :

  • Grade 304 (18/10) polished Stainless Steel, 1,2 mm gauge
  • Compact design suitable for wall mounting
  • Basin with pressed bowl
  • No brackets required, basin supplied with mounting plates
  • Hygienic and vandal resistant
Oval A commercial stainless steel hand wash basin

Above: The Oval A hand wash basin is popular in the food industry, hospitals and clinics. It is a small compact basin which is hygienic and designed specially for hand washing. IR taps or foot/knee operated taps can be used. Foot operated valves such as in the image to the right are very popular. When using a foot valve a tap is not required, only a dedicated spout.

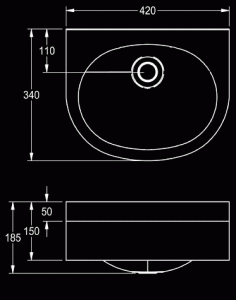

Oval A dimensions

Popular hands free basin conversion

Foot valves are popular with the Oval A hand wash basin. It allows hands free operation for use in the food and hospital industries. The foot valve is connected to a basin spout which is mounted on top of the Oval A basin. The foot valve uses pre-mixed water or cold water. Pre-mixed water is kept below 42°C through the installation of a thermostatic mixing valve.

wall mounted metered pedal floor valve

M-FV
Calderoni wall mounted pedal foot valve.

Popular taps used on the Oval A wall hung basin

Metered water saving tap with temperature control auto close

GR-36317000
Self closing water saving pillar tap with hot and cold mixing. Temperature adjustment lever on the side.

Walcro 100R self closing pillar tap

W-100R
Self closing pillar tap cold water or pre-mixed water only

100r self closing water saving metered basin tap

W-100R
Self closing water saving metered pillar tap

Thermostatic mixers mix hot and cold water between 39-50°C to prevent users burning their hands with hot water. These  thermostatic mixers are specially designed to be installed in industrial and commercial applications. The 15mm version supplies one to three basin. They can also be used in showers.

Hot cold mechanical water mixing device for basins

CO-EL-X60
Hot & cold water mechanical mixer. The unit does not control the temperature.

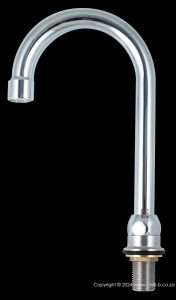

Hands free basin tap replacement spout

W-SSP/15
Deck mounted basin spout.

caleffi thermostatic mixing valve 521400

CA-521400
Thermostatic-Mixing-Valve 15mm DZR brass
