Vandal resistant prison shower

Vandal resistant prison shower heads and valves designed for buildings where vandalism is a problem such as in prisons. The W-CIRS-V2 shower head is designed for commercial and industrial showering applications. It features vandal resistant properties, internal strainer and provides jet type spray due to the internal propeller. The propeller makes it less susceptible to limescale blocking. The W-CIRS-V2 saves water and does not require a regulator.

Features

  • 15mm BSP female inlet
  • Flow rate range: 6 l/min to 8 l/min depending on pressure
  • Minimum operating pressure: 1 bar
  • Strainer: internal and removable for cleaning with Alen key.
vandal resistant prison shower rose
W-CIRS-V2
The vandal resistant shower head consists of four parts, the shower head, wall plate, grub screw and an allen key

Prison shower installation

For prison installations the W-CIRS-V2 shower head is installed with the W-155UWS metered shower valve. The valve comes with a stainless steel sleeve around the shower button, preventing vandals damaging the valve or tamper with it.  The operating pressure of the valve is 0.3 – 6 bar.

W-155S vandal resistant prison shower tap valve
W-155S
Vandal resistant prison metered water saving shower valve
vandal resistant shower installation diagram
Vandal resistant shower installation

Hostel type shower installation

water saving shower self closing tap
W-155S
Shower valve for hostels and other factory washrooms
prison shower installation
Shower head installation for high security showers

Blending hot water for showers

The W-155 range of metered shower valves does not mix hot and cold water. It uses cold water or pre-mixed (blended) water. Various thermostatic mixers are available depending on the number of showers that are used. Note that the final volume and pressure of the blended water must meet the minimum standard required for normal operation of the shower head and metered valve. For a single shower the W-15/3 thermostatic mixer or the mechanical CO-EL-X60 can be used. Note mechanical mixers will not prevent users from scalding, the temperature or mixing rate must be adjusted manually.
hot cold hostel mixer showers mining washroom

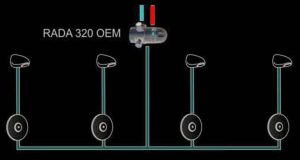

W-RAD320-OEM
Mixing hot and cold water for up to 4 showers
burn protection shower industrial commercial shower hostel hospital prison
W-RAD425-CF
Industrial hot cold water mixer for up to 8 showers
