 SSW Wall mounted surgeon's scrub-up sink

Model SSW specifications:

Wall mounted hospital surgeon’s scrub unit (Model SSW) manufactured from grade 304 (18/10) stainless steel 1,6 mm thick with 150 mm high integral splash back to back, curved internal corners and 40 mm waste outlet/s (please refer to table below). This unit is available in four standard lengths being 1200, 1500, 1800 and 2100 mm. Custom lengths can also be made. The front and sides of the unit has a double walled construction with a inner wall sprayed with vermin proof bitumastic sound deadening approximately 2 mm thick. The wall mounted hospital surgeon’s scrub unit is fitted with a removable galvanized mild steel 2 mm thick fixing plate. Unit fixed to wall 900 mm high from the top of the front apron to the finish floor level with anchor bolts (bolts specified elsewhere).
Installation: The height of the rim of the unit should be ±800 mm high. Similar to normal basin height.

Surgeon scrub unit features:

  • Grade 304 (18/10) Stainless Steel 1.6 mm gauge
  • Four standard lengths.
  • Hygienic medical grade stainless steel.
  • Double walled construction.
  • 150 mm high splash back.

Recommended fittings:

  • Grohe Euroeco Safety Mixer (SSC) single lever wall mounted with ceramic cartridge (GR- 32793000)
  • Cobra medical elbow action tap (CO-515/055-21/N or CO-515/055-21/HP).
  • Cobra medical elbow action single lever mixer (CO-507/N or CO-507/HP).
  • Cobra wall mounted medical mixer (CO-510-21/N or CO-510-21/HP)
  • Thermostatic mixer LX-TV-15LP.
  • Two isolating stop taps on each tap for maintenance (CO-228-15/NV).

Model SSW range:

  • Model SSW1200

    Product code: SS-SSW1200 (2630044/351900). Length 1200mm. Single or two bay. Single outlet. Wall mounted medical elbow mixers or sensor taps.

  • Model SSW1500

    Product code: SS-SSW1500 (2630045/351950). Length 1500mm. Two bay. Single outlet. Wall mounted medical elbow mixers or sensor taps.

  • Model SSW1800

    Product code: SS-SSW1800 (2630046/35200). Length 1800mm. Two or three bay. Double outlet. Wall mounted medical elbow mixers or sensor taps.

  • Model SSW2100

    Product code: SS-SSW2100 (2630047/352050). Length 2100mm. Two or three bay. Double outlet. Wall mounted medical elbow mixers or sensor taps.

franke wall mounted surgeon scrub unit hospital stainless steel model SSW 2630045 351950
SS-SSW1500

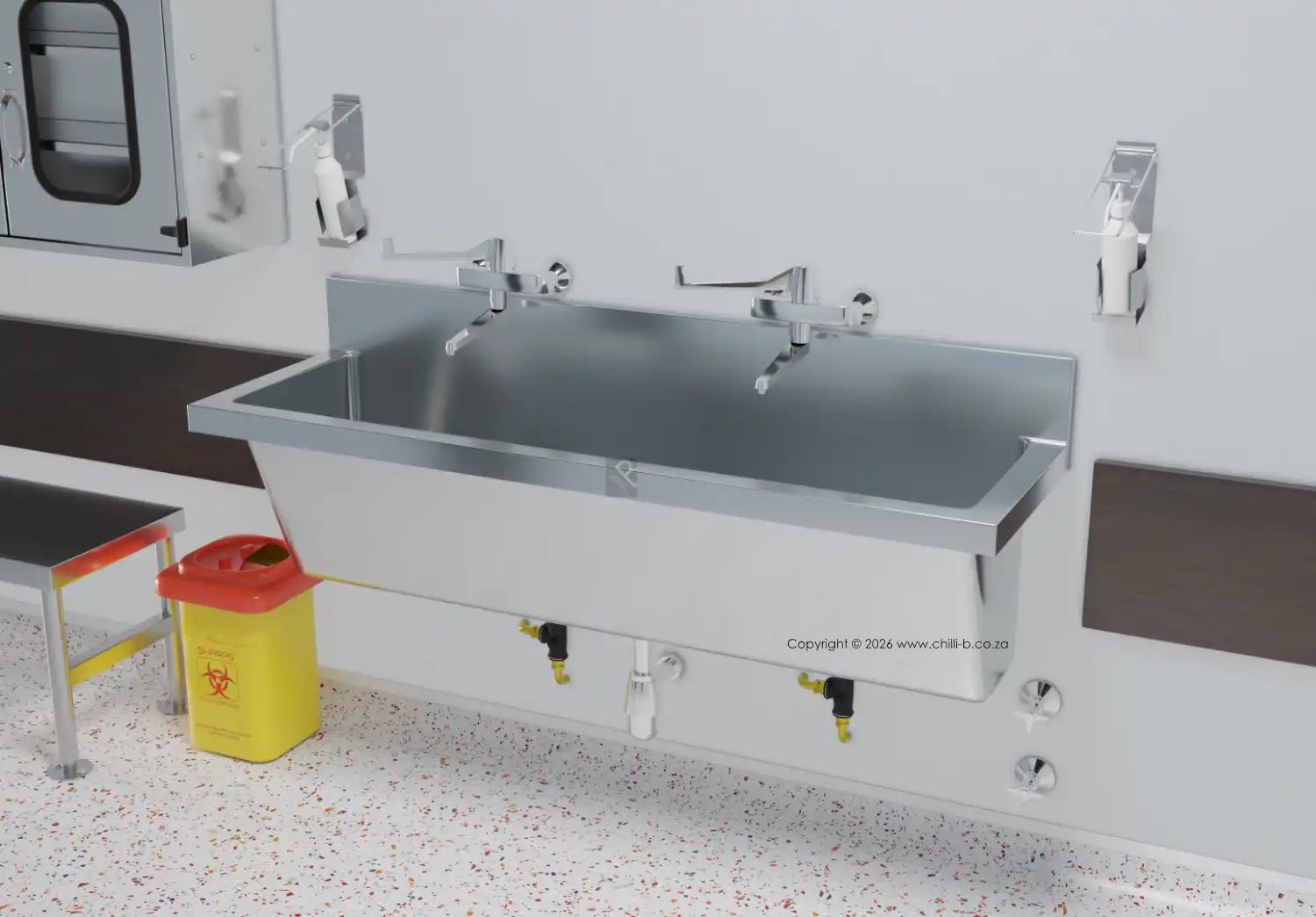

Wall mounted 1500mm SSW wurgeon scrub unit with CO-515/055-21/N medical mixers and thermostatic valves (LX-TV-15LP).
SS-SSW2100 2630047 352050 franke surgeon sink stainless steel hospital clinic supplier south africa 2100mm
SS-SSW1800
Model SSW1800 Three bay wall mounted surgeon scrub unit with CO-510-21/N medical elbow taps and thermostatic mixers
franke model ssw 2100 2630047 352050 wall mounted surgeon scrub south africa manufacturer supplier
SS-SSW2100
Model SSW 2100 wall mounted surgeon scrub unit with CO-507/HP elbow action medical taps and thermostatic mixing valves preventing users from burning their hands.
Top view of a surgeon scrub-up unit
Top view of scrub unit. 1200 mm - 2100 mm lengths available.
Side dimensions of surgeon hospital wall mounted sink
Side view of the wall mounted unit. Height above floor is ±250 mm
Diagram of surgeon scrub-up support back plate
Wall mounting plate supplied with the unit.

Alternative mixers

wall mounted metered pedal floor valve
M-FV
Calderoni wall mounted pedal foot valve.
Medical elbow action wall mounted hospital mixer
GR-32793000
Elbow action wall mounted medical mixer with 257 mm spout
Cobratron medical tap FELMX5CC-0GT0071
CO-EL508OVER
Medical sensor tap thermostatic
