Cleaner sink / Drip sink Model LDS

Cleaner / Drip sink specification :

Cleaner / Drip sink (Franke Model DSBC ) unit manufactured from 1,2 mm thick grade 304 stainless steel 0, 9 mm thick gauge with grid. Sink is 600 x 500 x 248 mm deep with a pressed bowl of 525 x 425 mm and 40 mm waste outlet with a capacity of 43 litres. The unit is fitted with a stainless steel hinged bucket grid which is manufactured from a 10 mm stainless steel round bar and is supplied with a pair of stainless steel Eagle brackets. The cleaner/drip sink is usually fixed to wall 600 mm high from the top of the front apron to the finished floor level with 4 of anchor bolts (bolts specifed elsewhere) This drip sink or cleaner sink is a multi environment cleaning sink used in factories, hospitals, shopping centers and other industrial and commercial sites. A tap bracket can be supplied as an optional installation accessory. This is a bracket which is fitted underneath the tap as support for the bucket to avoid over load to tap.

  • Factory code: 2630026 / 350960 (for Franke LDS with gallows brackets)
  • Order code: LDS or LDS-GBSS

Drip sink features :

  • LDS cleaner sink / drip sink
  • Grade 304 (18/10) Stainless steel.
  • Pressed drip sink bowl, one piece construction
  • Hinged bucket grid
  • Fitted with Eagle brackets
  • Bowl capacity 43 liters
  • Tap bracket optional

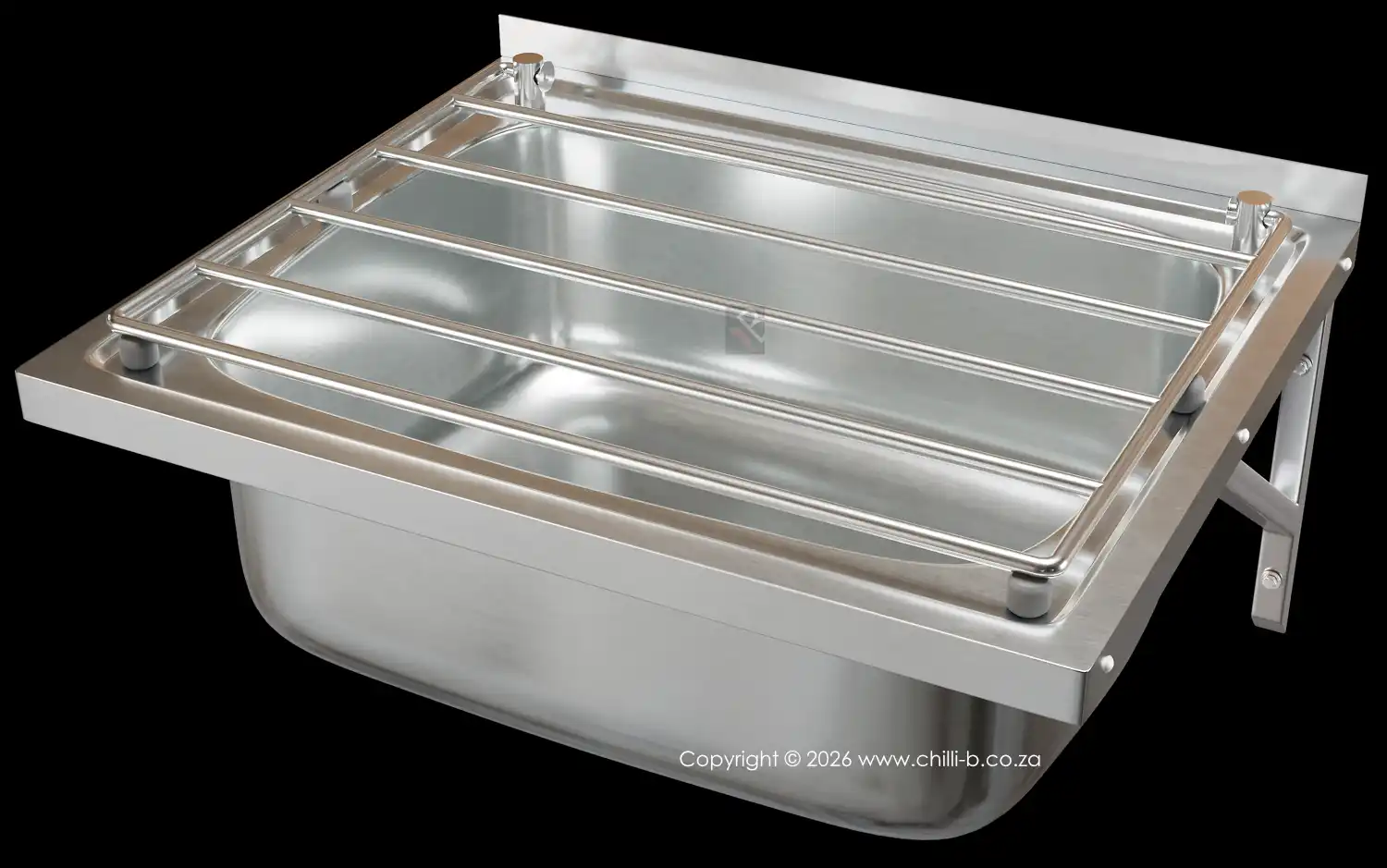

hospital drip cleaner sink gallows brackets stainless steel
LDS-GBSS
Wall mounted drip sink with stainless steel gallows brackets.

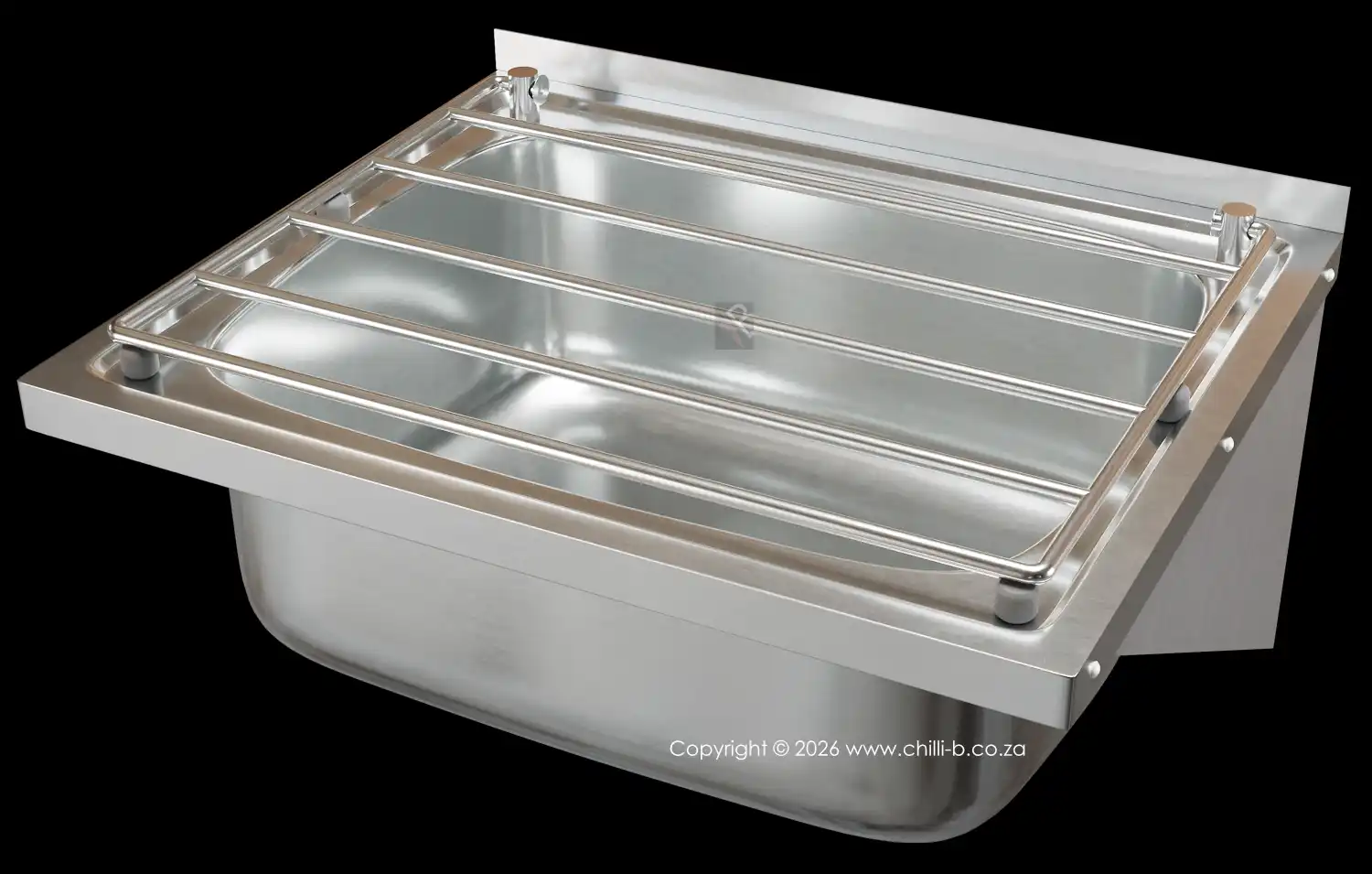

LDS hospital cleaner sink (drip sink)
LDS
Wall mounted drip sink with galvanised brackets.

LDS drip sink cleaner sink size

LDS drip sink diagram

Specialized slop sink



A specialized slop sink for use in food processing plants. The top brackets above the splashback support various types of wall mounted taps. Brackets at the back of the unit allow for cleaning behind the slop sink which increases hygiene. The top rim of the slop sink is 600mm high for easy access. Taps are installed 1000mm above ground level. A standard rubber p-trap must be installed (not chrome plated p-trap as these will get clogged).

slop sink woolworths woolslop
SS-P1-900-WW
Specialised slop sink with tap brackets on top and stabilizers at the back. Standard 38mm sink waste.
