Hospital bedpan sluice sink Model EL

Hospital EL bedpan and urinal bottle sluice sink manufactured from grade 304 (18/10) stainless steel 1.6 mm thick (draining board) and 1,2 mm thick (bowls). Unit comes standard with a 150 mm high integral splash back to the rear and 15 mm deep hospital beading with 80 mm apron to front and sides. The unit is fitted with a sluice bowl with an integral flushing rim and a 38 mm diameter inlet pipe for the flush valve and 110 mm waste outlet. The underside sprayed with vermin proof bitumastic sound deadening paint and has a galvanized mild steel backing sheet. Fitted with water saving auto shutoff metered valves to rinse the bedpans and urinal bottles.

Specification for EL sluice sink with Flush Valve:

Sink is supplied complete with factory fitted Cobra FM1.00 flush valve, 32 mm water supply through 50 mm sleeve on unit, 15 mm bedpan spray nozzle, 15 mm bottle spray nozzle (both nozzles activated by two 15 mm metered Cobra KM2-301/N stop valves).  Please refer to fixing table for fixing options.

EL Franke bepan urinal bottle sluice flush valve SEL kwikot franke 2990014
SS-EL-RFV

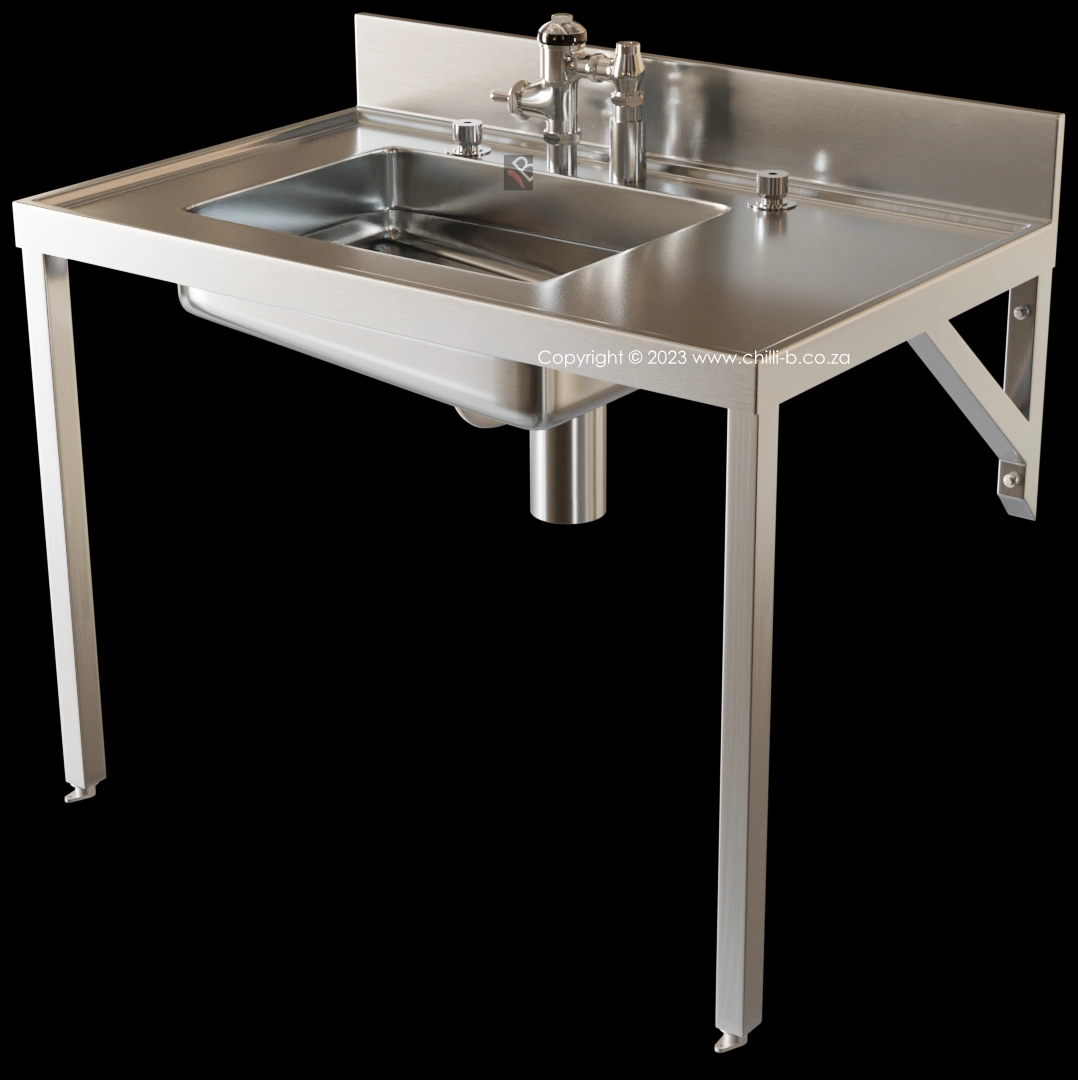

EL bedpan and urinal bottle washer with single bowl and right hand flush valve.
left hand bedpan sluice franke kwikot SEL1130 350300 2990013
SS-EL-LFV

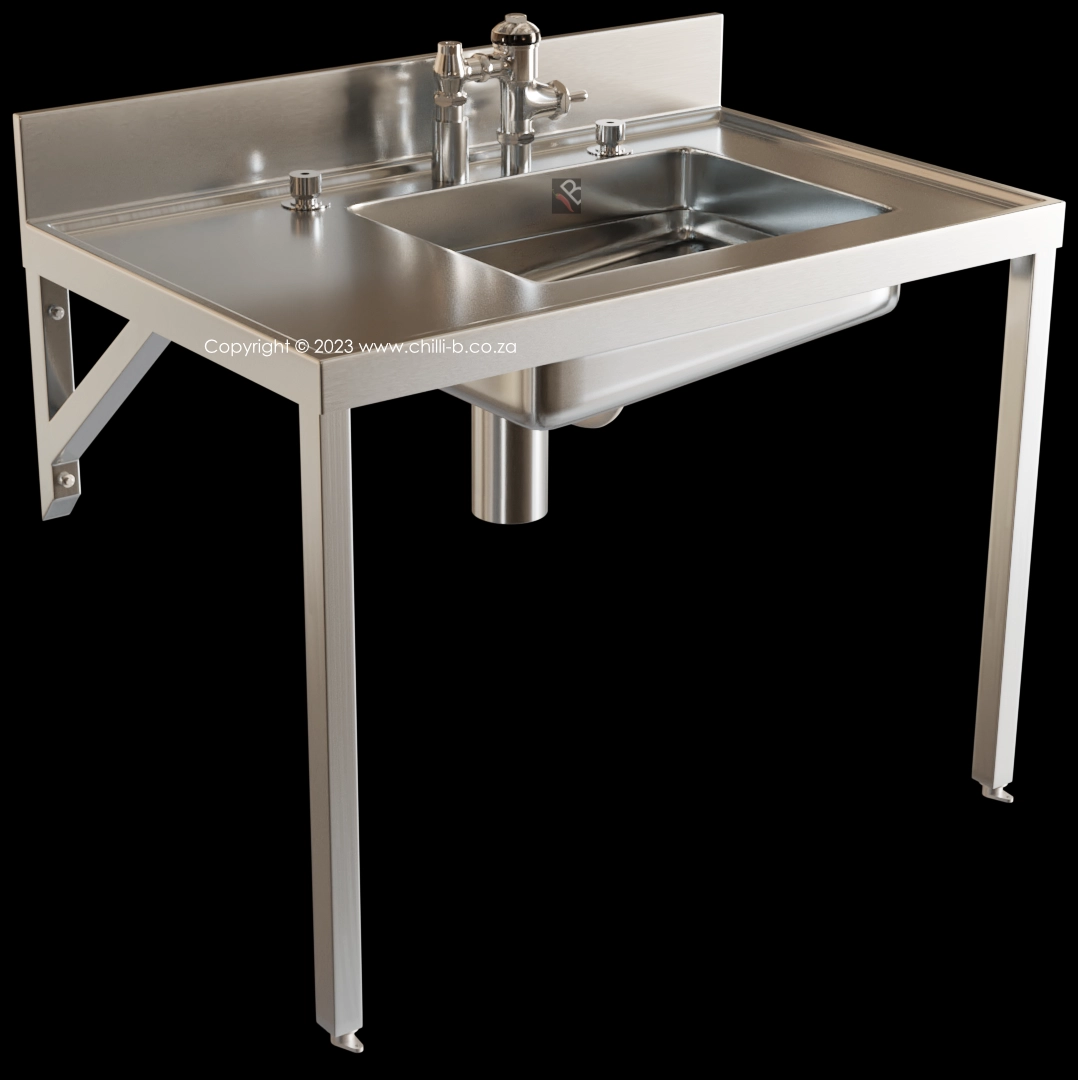

EL bedpan and urinal bottle washer with single bowl and left hand flush valve.

Specification for EL sluice sink with High Level Cistern:

This unit is supplied complete with 11 liters stainless steel high level cistern fitted with Supa Flush Valve and pull chain, 41 mm diameter stainless steel flush pipe and 41 mm chrome plated coupling which is reduced on one end to fit the 38 mm connection on the unit. Please refer to fixing table for fixing options.

EL SEC1130 Franke 350306 2990015 bedpan sluice dirties room washer
SS-EL-RHC

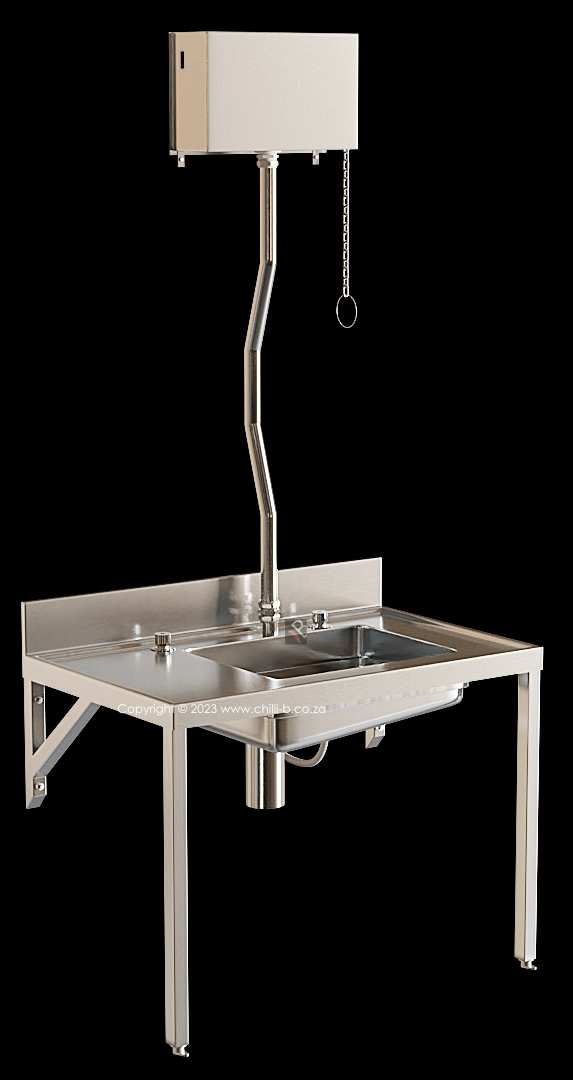

Single bedpan and urinal bottle washer with high level cistern to the left.
EL SEC1130 single bedpan urinal bottle washer franke 2990016 high level cistern sluice
SS-EL-LHC

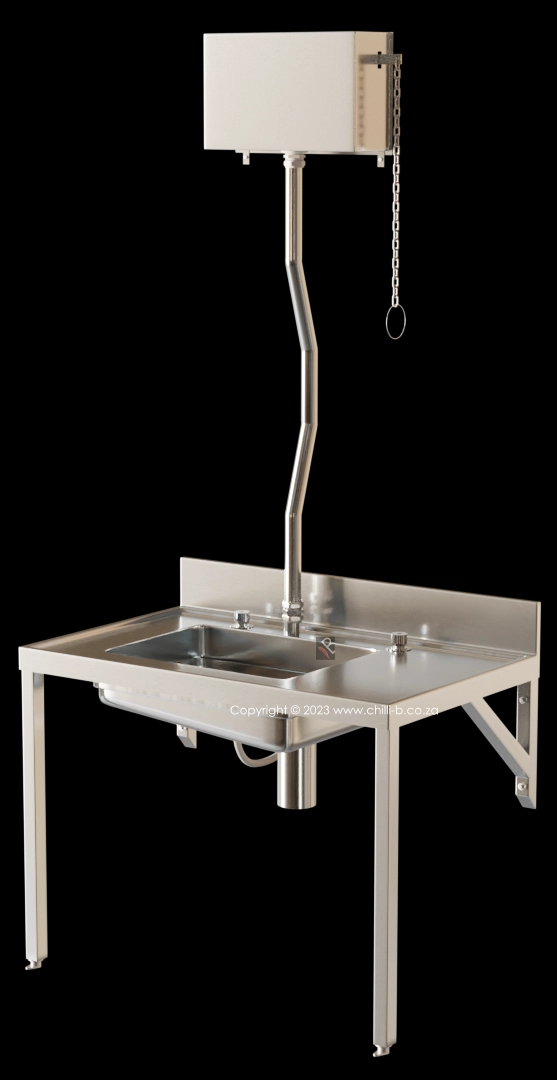

Single bedpan and urinal bottle washer with high level cistern to the left.

Features

  • Grade 304 (18/10) Stainless Steel 1.6 mm gauge on drainer and 1,2 mm gauge on bowl
  • Hygienic and durable
  • Pressed seamless bowl designed for the highest level of hygiene and durability
  • Unit is plumbed at factory and  supplied complete with fittings
  • Sluice bowl with built in Flush rim mechanism with 110 mm outlet
SKUFactory codeDimensionsBowl positionFlush system
SS-EL-LFV2990013/3503001 130 x 685 mmLeft handFlush valve included
SS-EL-RFV2990014/3503021 130 x 685 mmRight handFlush valve included
SS-EL-RHC2990015/3503041 130 x 685 mmRight handHigh level cistern included
SS-EL-LHC2990016/3503061 130 x 685 mmLeft handHigh level cistern included
EL Bedpan sluice sink diagram
El bedpan sluice sink diagram side dimensions
el-bedpan-sluice-hospital-sink-diagram-top

Fixing Table Options:

Round Legs manufactured from grade 304(18/10) stainless steel 41 mm diameter x 1,2 mm thick round tubing. Legs to be detachable and fitted with chrome plated adjustable foot pieces with flanges.

300372 - 40mm diameter round legs
F-2120033 – 40mm diameter round legs
Square Legs manufactured from grade 304(18/10) stainless steel 40 x 40 mm x 1,2 mm thick square tubing. Legs to be detachable and fitted with chrome plated adjustable foot pieces with flanges

300373 - 40 x 40mm square legs
F-2120031 – 40 x 40mm square legs
Gallows Brackets with Front Legs manufactured from grade 304(18/10) stainless steel 40 x 40 mm x 1,2 mm thick square tubing. The front leg is detachable and is fitted with chrome plated adjustable flanged foot pieces.

300370 - 40x 40mm square gallows bracket 355100 - 40 x 40mm square gallows bracket with detachable front leg
F-2120035 – 40 x 40mm square gallows bracket
355100 – 40 x 40mm square gallows bracket with detachable front leg
Cantilever Brackets manufactured from grade 304(18/10) stainless steel 40 x 40 mm x 1,2 mm thick square tubing. These brackets are used in areas where the floors have covered skirting and the design makes cleaning under the unit very easy.

355102 - 40x 40mm cantilever bracket
 40 x 40mm cantilever bracket

Alternative products that people also use are:

ec combination sluice bedpan washer franke 2630001 350050
EC6-FLV-RHB
Combination bedpan wash-up sluice sink with flush valve.
single slop hopper flush valve B22360TG
SS-SH
Slop hopper with W-B106 flush valve.
