Foot valves and knee valves

Foot valves and knee valves

Use foot valves and knee valves where hands-free operation is essential due to hygiene and safety. Both foot valves and knee valves are used with stainless steel hand washbasins and wash troughs. The foot and knee valves supply only cold water or pre-mixed water. Pre-mixed water is supplied through a thermostatic mixing valve such as the Meynell 15/3 (One or two adjacent basins) or Rada 222 DK (3-5 adjacent basins). Both thermostatic mixers will prevent hot water scalding thus protecting the user.

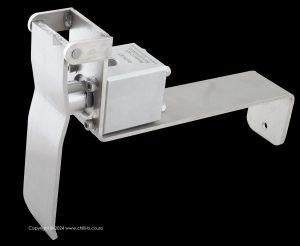

Knee operated hands free basin valve

The knee operated industrial basin valve with wall bracket. Aluminium valve housing with stainless steel demand valve cartridge. The valve has a no hold function, so pressing the lever will allow water to pass through to the basin. Releasing the lever closes water flow.

Dimensions: 295 x 215 x 73 mm (Frame with valve).

Length of the bracket can be changed on special order.

knee operated industrial c-kv basin hands free valve tap
C-KV
Knee operated industrial basin valve

Floor mounted boxed hands free foot valve

15mm BSP DZR solid aluminum floor mounted boxed foot valve with stainless steel industrial cartridge. Operates as a demand valve, so pressing the lever will allow water to pass through to the basin. Releasing the lever closes water flow. Activated with an inline demand valve. Pressure regulating valve not included but highly recommended.

Dimensions: 68 x 68 x 64 mm (Frame)
Dimensions: 88 x 68 x 82 mm (with valve)

Hands free foot operated boxed foot valve
C-BFV-DA
Boxed foot valve with stainless steel cartridge.

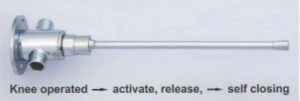

Wall-mounted hands free knee valve

15mm BSP DZR brass wall mounted knee valve. Ideal for industrial or commercial applications where the floor needs to be clear of obstacles.  Operates as a metered valve, so pressing the lever with your knee will allow water to pass through for about 8 seconds after which it will shut off automatically.

Always use an inline strainer to prevent dirt from damaging the inside mechanism. Warranty is void if the inline strainer is not used. Maximum pressure allowed is 5.5 bar. If you suspect higher pressures please install a pressure regulating valve. NOTE this is a light duty valve designed for washrooms. it is not designed for continues use such as fast food outlets.

Product code: C-KV

Knee operated hands free tap or valve
C-KV
Knee operated metered knee valve installed against a brick wall (not dry wall please!)
C-KV

For use with potable municipal water only, do not use with borehole water. Sediment and extreme fine particles will damage the mechanism of the cartridge and prevent it from closing.

Calderoni metered foot valve

We are very excited to introduce our new Italian Calderoni commercial mixing foot operated valve to the South African market which will set new standards in quality and durability. Unlike some other “Italian” brands this unit is 100% manufactured in Italy (certified). It is easy to use and extremely durable, This foot valve is unique in several ways:

  • Flow time can be set between ±3-40 seconds. Flow duration can be adjusted after installation, without removing valve.
  • Flow rate must be controlled with flow restrictors on the spout (Sold separately)
  • It is manufactured from corrosion resistant DZR brass which is the recommended brass for SA water conditions, however, surprisingly, very few manufacturers use this brass (EN12164 EN12165)
  • This one valve can either be mounted on the floor or against the wall
  • Very light touch required to activate the water flow. Can be used barefoot.
  • Recommended water temperature 5-55 degrees Celsius
  • Min 0,5 bar- Max 4 bar
  • Water flow 12 l/min (3 bar) EN 816:2017, unrestricted.
  • 5 Year Italian manufacturing defects bring in warranty.
calderoni metered lever foot valve
M-FV
Calderoni metered lever foot valve. Floor or wall mounted

For use with potable municipal water only, do not use with borehole water. Sediment and extreme fine particles will damage the mechanism of the cartridge and prevent it from closing.

Optional items for the knee and foot taps

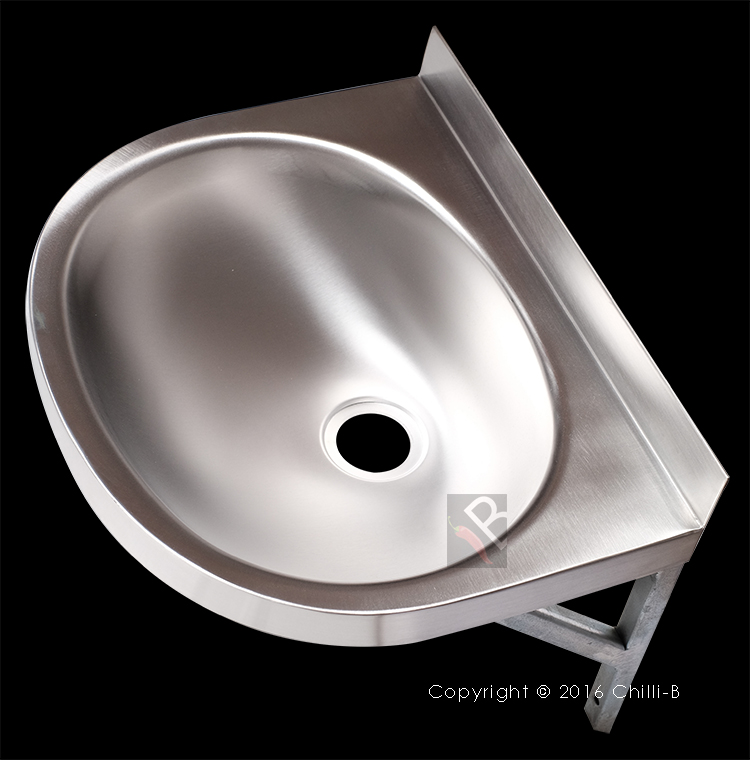

Oval B Industrial wall hung hand wash basin
F-OVAL-B
Wall hung grade 304 (18/10) industrial hand wash basin
thermostatic medical mixing valve tempering hot cold water
LX-TV-15CxC
Thermostatic medical safety mixing valve.
Hands free basin tap replacement spout
W-SSP/15 Fixed spout
Deck mounted spout to replace the taps. Flow rate not adjustable. No fine aerator to reduce splashing.
Inline strainer to keep dirt out of taps, mixers and valves
W-STR-15
Inline 15mm strainer to keep dirt out of valves. Included in C-BFV
W-PRV-STD-32
Pressure regulator with easy adjustable button. No tools required for adjustment.
