Slop hopper or sluice sink

This Slop hopper, also referred to as slop or sluice sinks (the newer term), are used to empty and fill pails as well as rinsing out mops. These units can be mostly found in hospitals, clinics, industrial or commercial laundry or cleaning rooms.

Slop Hopper specifications:

Slop hopper (model SS-SH is 540 x 540 mm, manufactured from grade 304 (18/10) stainless steel 1,2 mm thick with a 100 mm high integral splash back to the rear and both sides. The cone has an integral flushing rim and a 110 mm waste outlet for pan connector, the inlet is fitted with a 38 x 250 mm long vertical flush pipe for a standard flush valve. Slop hopper fitted with a hinged bucket grid manufactured from 10 mm diameter grade 304 (18/10) stainless steel round bar complete with two 40 x 40 mm square stainless steel wall mounting gallows brackets. Unit fixed to wall 600 mm from the top of the front apron to the finish floor level with 4 off anchor bolts.

Plumbing fittings are not included as they are proprietary to the installation method specifications and the plumbing in the building. Please consult your plumber to connect the correct plumbing fittings. Note the flush valve is optional and are quoted separately.  You may use your own flush valves.  We recommend the following two types of flushing systems.

A slop hopper with stainless steel p-trap is also available and must be ordered with product code SS-SH-SSPT

Slop hopper with flush valve specifications:

  • Walcro W-B-106 – 38 mm water supply flush valve or
  • Walcro W-B-104 with isolating valve, 38 mm water supply flush valve flush pipe connected to CP on brass adapter (Plumbing fittings not included in units).

Make sure when using a flush valve that the municipal water supply does not exceed 6 bar during the night.  If it is suspected that the water supply is higher than 6 bar a pressure reducing valve must be installed. Any dirt can also adversely affect the long term operation of flush valves.  Please install an inline strainer such as W-STR-20 or WC-STR-25 to prevent dirt particles damaging the mechanism rendering the slop hopper unusable.

slop hopper medical laundry dirty room hospital
SS-SH
Slop hopper with FM1-000 flush valve.
standard single slop hopper flush valve franke isolating valve.
SS-SH
Slop hopper with W-B104 flush valve.
single slop hopper flush valve B22360TG
SS-SH
Slop hopper with W-B106 flush valve.
2630037-001 franke slop hopper stainless steel p-trap hospital
SS-SH-SSPT
Slop hopper with W-B106 flush valve and stainless steel p-trap.

Sloptop with flush valve specifiations (A Chilli-B original design)

Sloptop (model SS-SH-1000L is 1000 x 540 mm, manufactured from grade 304 (18/10) stainless steel 1,2 mm thick with a 100 mm high integral splash back to the rear and both sides. The cone has an integral flushing rim and a 110 mm waste outlet for pan connector, the inlet is fitted with a 38 x 250 mm long vertical flush pipe for a standard flush valve. Slop hopper fitted with a hinged bucket grid manufactured from 10 mm diameter grade 304 (18/10) stainless steel round bar complete with two 40 x 40 mm square stainless steel wall mounting gallows brackets. Unit fixed to wall 600 mm from the top of the front apron to the finish floor level with 4 off anchor bolts (not supplied with unit). Optional deck mounted trigger spray installed on the work surface next to the  cone with CO-128-15/NV stop tap.

sloptop sluice 1000mm extended worktop dirty room hospital laundry janitor sink
SS-SH-1000
Sloptop sluice with 1000mm worktop for convenience and W-B106 flush valve
sloptop slop hopper trigger spray hospital
SS-SH-1000
Sloptop sluice with 1000mm worktop for convenience and deck mounted trigger spray and W-B106 flush valve.

Sloptop with high level cistern specifications:

This unit can be adapted to flush using 11 liter stainless steel high level cistern fitted with Supa-Flush Valve and pull chain, 41 mm diameter stainless steel flush pipe and 41 mm chrome plated coupling which is reduced on one end to fit the 38 mm connection on the unit.  The high level cistern is ideal when municipal water supply is not reliable or where there is not enough pressure to operate a standard flush valve.  In most cases the high level cistern is used in rural areas.  The cistern can also be filled with an external water tank.

B22360TG-HLC slop hopper standard single high level cistern 2630035-004
SS-SH-HLC
Sloptop slop hopper with high level cistern
slop hopper franke high level cistern 2630039-001 B22365
SS-SH-1000L-HLC
Sloptop sluice sink with 1000mm extended top
sluice sink high level cistern 2630039 franke top work extended
SS-SH-1000L-HLC
Sloptop sluice sink with 1000mm extended top and trigger spray

Optional accessories

Tap bracket for slop hopper



Tap bracket to fit under a wall mounted tap to avoid heavy bucket load on taps.
(F-CH-BRCKT – 2120128/354952)

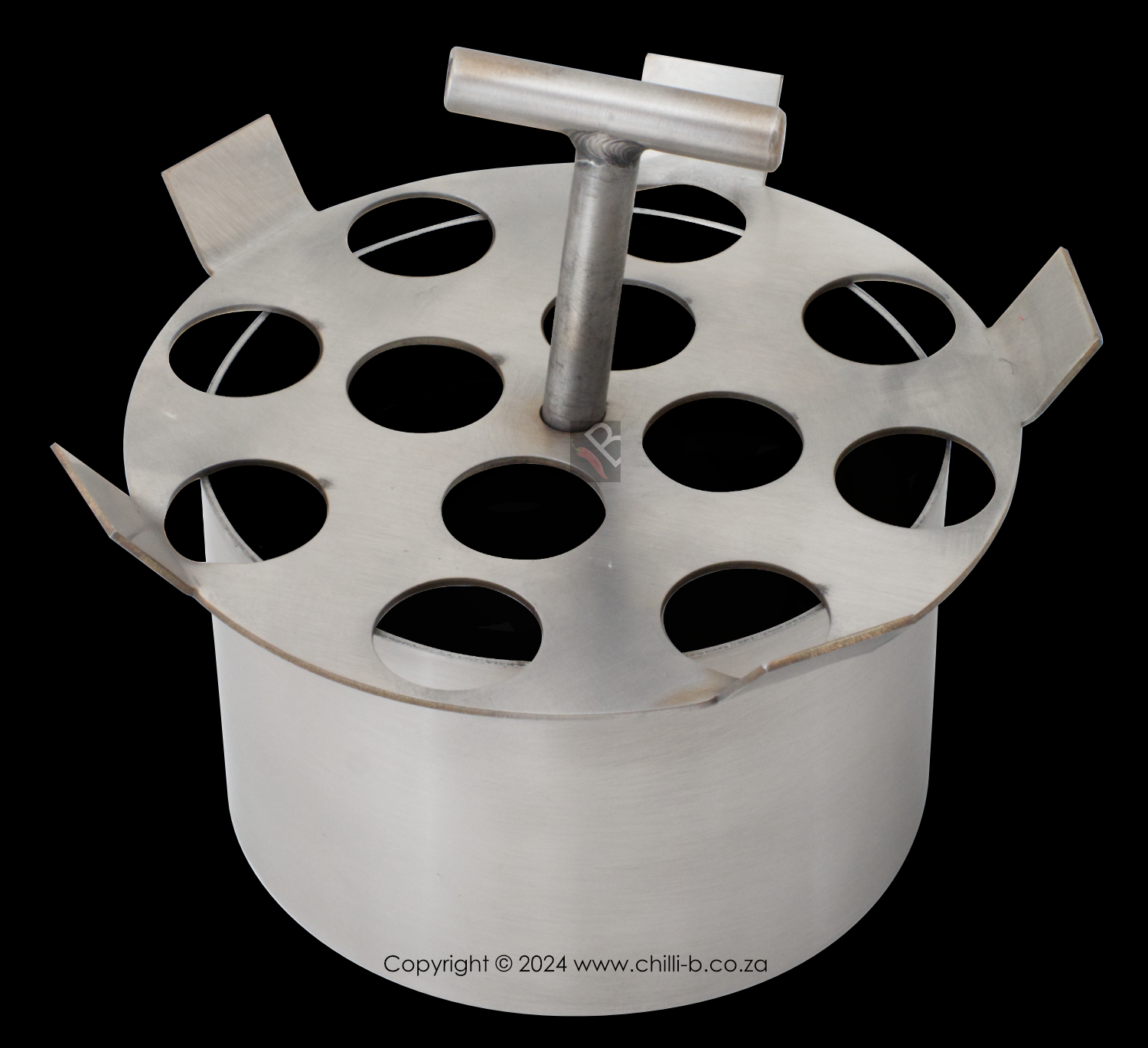

Removable grid for the CH hospital slop hopper



Removable waste grid. Making it easy to remove large objects from the waste or preventing them to be flushed away (F-CH-GRID – 2630038 / 351356)

Recommended flush valves

Walcro 106T exposed toilet flush valve
W-B-106 top entry
Walcro 104T top entry exposed toilet flush valve
W-B-104 Top entry with isolating valve.
Recommended unit.

Recommended tap or trigger spray

Although wall mounted bib taps are installed with slop hoppers it is recommended to install a wall mounted trigger spray.  This makes it easy for users to clean out bedpans or buckets without spilling or holding the bedpans in position.  The whole system just becomes more hygienic and efficient.

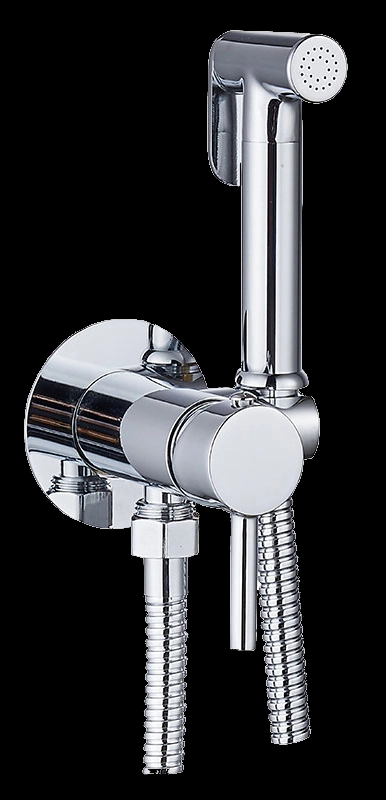

Hand activated trigger spray
GR-27514001

1445666

Sample installations

Slop hopper with Walcro 106T flush valve (FR-CH + WC-106T)
Slop hopper with W-B-106 flush valve
F-CH + W-B-106
Slop hopper with high level cistern. (FR-CH + FR-CISTERN-H)
Slop hopper with high level cistern. (F-CH + F-CISTERN-H)
Slop hopper with stainless steel trap and Walcro Flush Valve. (FR-CH + WC-104T)
Slop hopper with stainless steel trap and Walcro Flush Valve. (F-CH + W-B-104)
Slop hopper with Walcro 104T flush valve with isolator. The two hands sprays are optional. (FR-CH + WC-104T)
Slop hopper with Walcro 104T flush valve with isolator. The two hands sprays are optional.
F-CH + W-B-104)
