Sensor activated infrared hands free taps

The Modus is a 9V battery operated hands free sensor tap that mixes hot and cold water. The temperature can be set on the side of the tap. Temperature is not thermostatically controlled. Flow volume: max. 5 l/min independent of pressure between 1-5 bar. max pressure 8bar excluding water hammer. Water temperature max. 70°C (80°C permissible for 10 min./day). Test Mark: P-IX 28338/IO, Belgaqua.

A touch free sensor operated pillar tap powered by 4 x AA batteries. Water pressure range 0.5-6bar. Sensor distance 28 cm. Maximum water temperature 70°C, however, to prevent scalding please use a thermostatic mixer as this tap does not mix hot and cold water. When your hand enters the sensing range, the indicator will light up and the water will start flowing. As soon as you remove your hand the water will stop. Water flow will automatically stop after 70 seconds to avoid water wastage.

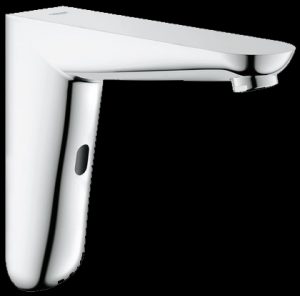

Designed for deck mounted single hole installations. The IR tap comes with a plug and 230 V, 50 Hz, 3,2 VA transformer. The flow rate is limited to 5.0 L/minute to save water. The integrated aerator reduces the splash effect on hands and basin, making it more hygienic. The solenoid valve is integrated into the tap housing. The tap comes with a flexible connection hose. Dirt strainers reduce maintenance and damage to solenoids. Automatic safety stop after 60 sec. (factory set). Additional functions and precise settings by the factory can be requested. Automatic flushing after 1 or 3 days without use. Activation of a permanent run for thermal disinfection for 3.5 or 11 minutes. CE approved. Acoustic group I according to DIN 4109 type of protection faucet IP 59K minimum. Recommended pressure 1.0 – 4.0 bar. Please use inline strainers and pressure reducers with this tap. The tap is easy to install.

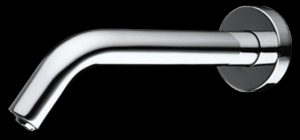

Infrared sensor activated wall mounted. This tap does not mix hot and cold water. It is for cold or premixed water only. Use thermostatic mixers for hot and cold mixing. 6 V lithium-battery, type CR-P2 battery lifetime: approx. 7 years (150 actuations a day). Flow rate 5.7 l/min. All metal body ideal for commercial use.
Multistage battery status display. Pre-set programs which can be adjusted by the factory on request: auto flush, thermal disinfection, cleaning CE approved. Recommended pressure 1.0 – 4.0 bar.

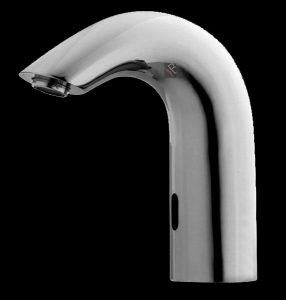

The Corba EL-JOE is an industrial sensor pillar tap. Ideal for hands free washing in public spaces or food processing factories where hygiene is extremely important. The infrared sensor activates a solenoid valve which releases the water for a set time.The tap uses 9V battery (Not supplied). 230V can be used with EL-TRANS3-M which can supply power to 3 taps. Use EL-TRANS3-B/U if you need a transformer and backup power supply. For large installations use the EL-TRANS to supply power to 10 taps with built in UPS.

Features:

• Single temperature (cold or pre-blended water).
• Operating pressure 0,3 to 8,0 bar, maximum temperature 70ºC.
• Flow time can be set between 1 to 60 seconds.
• The tap will flow whilst sensing proximity of hands.
• Maximum time period of activation 60 seconds.

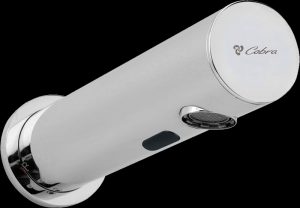

Cobra EL-3002 infrared sensor wall tap is used in commercial and industrial places. It is designed for high volume use. It does not mix hot and cold water so pre-mixing through a thermostatic valve is required for hot water. It comes standard with wall spout. Solenoid valve and Super capacitor power supply – C-EL-PWRSUP. The EL-3002C comes with a panel mounting pack for easy concealed installations and IP67 9V Transformer box. To avoid reflection problems keep a distance of more than 300mm between the sink and spout.

Features EL-3002 – 6V:

• Single temperature (cold or pre-blended water).
• Operating pressure 0,3 to 8,0 bar, maximum temperature 70ºC.
• Flow time can be set between 1 to 60 seconds.
• The spout will flow whilst sensing proximity of hands.
• Maximum time period of activation 60 seconds.
• To avoid reflection problems keep a distance of more than 300mm between the sink and spout
• 6 x AA batteries required

Features EL-3002C – 230V:

• Single temperature (cold or pre-blended water).
• Panel mounting pack for easier concealed installations in a brick wall.
• Operating pressure 0,3 to 8,0 bar, maximum temperature 70ºC.
• Flow time can be set between 1 to 60 seconds.
• The spout will flow whilst sensing proximity of hands.
• Maximum time period of activation 60 seconds.
• Power via a 230V connected to C-EL-PWRSUP IP67 9V transformer box

Minimum pressure	0.1 Bar
Maximum pressure	5.0 bar
Sound insulation	No
Default flow time	Auto
Hot cold mixing	No
Minimum flow pressure	1 bar
Power requirements	230 V
Auto safety shut-off	60 sec
Order code	GR-36269000
Download diagram

Minimum pressure	0.1 Bar
Maximum pressure	5.0 bar
Sound insulation	No
Default flow time	Auto
Hot cold mixing	No
Minimum flow pressure	1 bar
Power requirements	6 V
Order code	GR-36271000
Download diagram

Use CO-EL-X60 for manual hot and cold mixing. For precise thermostatic temperature control use the W-15/3 thermostatic mixer.

Minimum pressure	1.0 Bar
Maximum pressure	4.0 bar
Sound insulation	No
Default flow time	± 60 sec
Battery operation	6 V IP59K
Minimum flow pressure	1 bar
Product code (new/old)	2150032
Order code	F-F3EM1006
Download diagram
