Sluice and sink combination

Model AR16 Sluice and sink combo unit 1600 x 600 mm overall dimensions. manufactured from 1.2mm thick grade 304 (18/10) stainless steel with a 150 mm high integral splash back to the rear. The sluice cone has an integral flushing rim and a 110 mm waste outlet for standard pan connector The inlet is fitted with a 38 x 150 mm long vertical flush pipe for a standard flush valve or high level cistern with adaptor connection. The sink dimensions are 500x400230mm with 40mm waste outlet. The unit is mounted against a brick wall with 40×40 mm square stainless steel gallows brackets with top front surface 850mm from the floor. The unit must be fixed to the wall with appropriate raw bolts.

Sluice and sink combo with high level cistern

1200mm Left hand sluice sink combination high level cistern stainless steel hospital
SS-AR12L-HLC
1200mm left hand sluice and sink combination with high level cistern, trigger spray and kitchen sink mixer.
slop hopper sluice basin combo hospital complete set plumbing

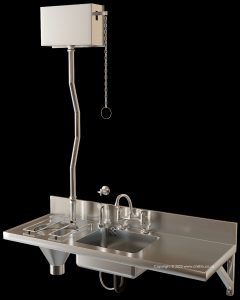

SS-AR16L-HLC
1600mm left hand sluice and sink combination with high level cistern, trigger spray and kitchen sink mixer.
hospital sluice basin combo large stainless steel

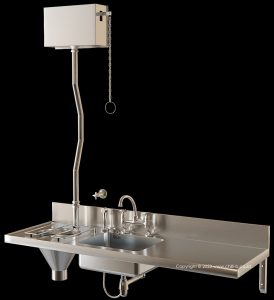

SS-AR18L-HLC
1800mm left hand sluice and sink combination with high level cistern, trigger spray and kitchen sink mixer.

Sluice and sink combo with flush valve

SS-AR12L-FLV
1200mm left hand sluice and sink combination with W-B106 flush valve, trigger spray and kitchen sink mixer.

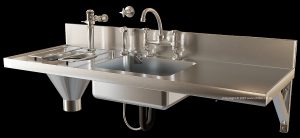

SS-AR16L-FLV
1600mm left hand sluice and sink combination with W-B106 flush valve, trigger spray and kitchen sink mixer.
hospital sluice basin combo large stainless steel flush valve clinic

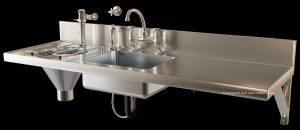

SS-AR18L-FLV
1800mm left hand sluice and sink combination with W-B106 flush valve, trigger spray and kitchen sink mixer.

Model SS-SHBC slop hopper basin combo

Model SHBC is a new design with large deep bowl basin suitable for pillar taps or kitchen sink mixers. The basin is too far from the back for wall mounted taps.  The slop hopper section is lowered for easier access than the CHBC. Extra hygiene is achieved with higher splashbacks to the back and additional splashback on the side of the slop hopper so that the wall or floor next to the hopper does not get dirty.

hospital slop hopper basin combo left hand stainless steel supplier

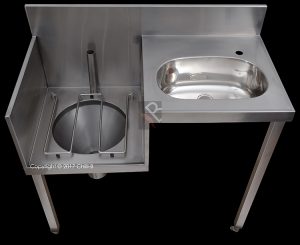

CB-SHBC-L
Slop hopper basin combo left hand
slop hopper stainless steel right hand wall mounted supplier

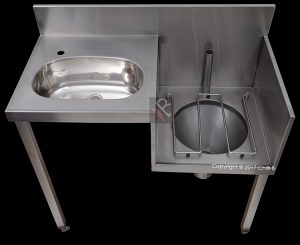

CB-SHBC-R
Slop hopper basin combo right hand

Franke model CHBC Slop Hopper Wash hand basin combo

Franke model CHBC Slop Hopper Wash hand basin combo unit 965 x 550 mm manufacture from grade 304 (18/10) stainless steel 1,2 mm thick with a 100 mm high integral splash back to the rear and both sides. The cone has an integral flushing rim and a 110 mm waste outlet for pan connector, the inlet is fitted with a 38 x 250 mm long vertical flush pipe for a standard flush valve. Unit fitted with a hinged bucket grid manufactured from 10 mm diameter grade 304 (18/10) stainless steel round bar. Wash hand basin size 360 x 280 x 140 mm deep with a 40 mm waste outlet is included on the left or right hand side (please specify). Unit complete with two 40 x 40 mm square stainless steel wall mounting gallows brackets. Unit fixed to wall 850 mm from the top of the front apron to the finish floor level with 4 off anchor bolts (bolts specified elsewhere).
Standard Flushing Method Using Flush Valve methods:

  • Walcro W-B106 – 25 mm water inlet supply flush valve or
  • Walcro W-B104 with isolating valve, 25 mm water inlet supply flush valve flush pipe connected to CP on brass adapter (Walcro fittings not included in units).
  • Left hand slop hopper basin combo: 2630039/351360
  • Right hand slop hopper basin combo: 2630040/356664
  • High level cistern can also be ordered separately.

Features:

  • Grade 304 (18/10) Stainless Steel 1.2 mm gauge
  • Hygienic and durable
  • Hinged bucket grid (Optional)
  • Outlet to suit standard 110 mm PC or cast iron “P”- Trap
  • Pressed wash hand basin integrated into a stepped work top for maximum hygiene.
  • 150 mm splash back
  • 40 mm Square tube brackets to allow for wall mounting
  • Options to use the system with high level cistern, low level cistern or various high pressure flush valves
  • Various types of taps can be installed on the basin. The most popular ones are metered pillar taps to save water.

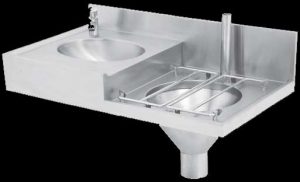

CHBC Stainless steel slop hopper left hand bowl 2630039 franke
F-CHBC-L with left hand slop hopper.
2630039/351360

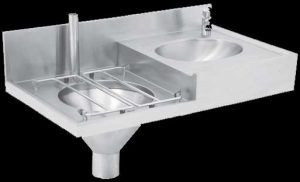

CHBC Stainless steel slop hopper right hand bowl Franke 2630039-001
F-CHBC-R with right hand slop hopper
2630040/356664

Alternatives to the slop hopper combos

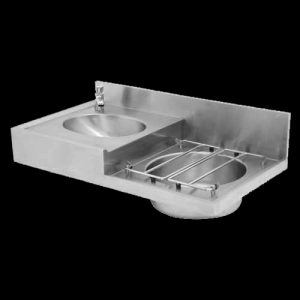

DSBC drip sink cleaner sink combo
DSBC drip sink basin combination
single slop hopper flush valve B22360TG
SS-SH
Slop hopper with W-B106 flush valve.
