S1 Single bowl catering sink
Single bowl catering sink (Franke model “S1” ), bowl positioned at the end or center (please specify when placing orders or requesting quotes). The S1 catering sink bowl’s are manufactured from grade 304 stainless steel and are 1,2 mm thick with a 150 mm high integral splash back to the rear and 50 x 10 mm turn down with a beaded edge on the remaining sides. The S1 catering sink with a pressed 500 x 500 x 230 mm deep bowl comes with a 40 mm waste outlet. The underside of the sink’s bowl is sprayed with vermin proof bitumastic sound deadening and supported with a 30 x 30 x 3 mm framework and galvanized mild steel backing sheet. The single bowl catering sink can be fixed 900 mm high from the top of the front apron to the finish floor level with anchor bolts (bolts specified elsewhere). The catering sinks can be used as freestanding units with either round or square legs or they can be fixed to a wall with gallows brackets which come with a detachable front leg. These units can also be supplied without any fixing options, to be used as drop-on units mounted on top of cabinets. Please refer to fixing table for fixing options.
S1 catering sink features
- Pressed bowls 500 x 500 x 230 mm deep
- Grade 304 (18/10) Stainless Steel 1.2 mm gauge
- Fully sound deadened with galvanized backing sheet
- Hospital bead to prevent spillage
- 57 Litre Bowl Capacity
Optional accessories
- Stainless steel solid under shelf
- Stainless steel slatted under shelf
- Non- standard sizes upon request
- Splash backs to right or left ends

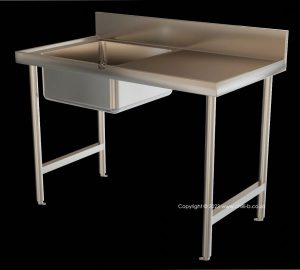

Standard single bowl catering sink

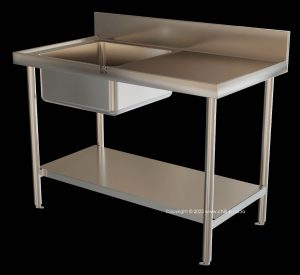

Single bowl catering sink with US-1200-SOL solid under shelf

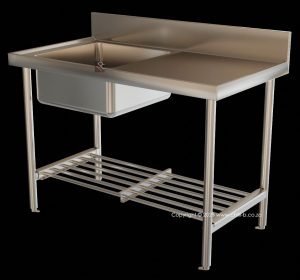

Single bowl catering sink with US-1200-SLA slatted under shelf

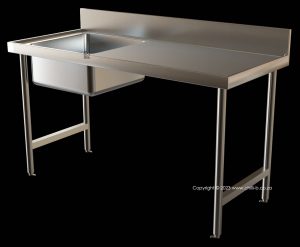

Standard single bowl catering sink

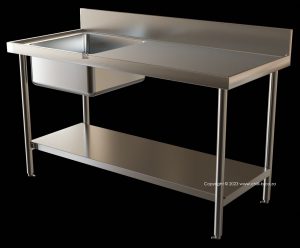

Single bowl catering sink with US-1500-SOL solid under shelf

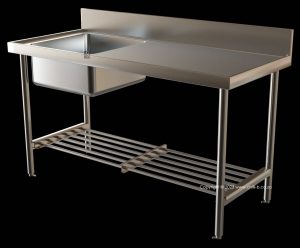

Single bowl catering sink with US-1500-SLA slatted under shelf

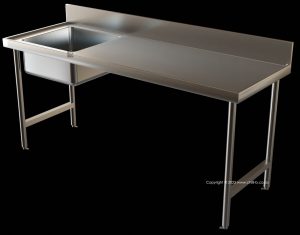

Standard single bowl catering sink

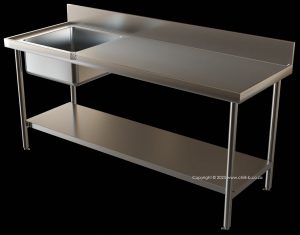

Single bowl catering sink with US-1850-SOL solid under shelf

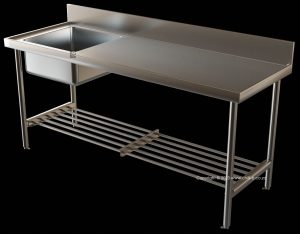

Single bowl catering sink with US-1850-SLA slatted under shelf
-
SS-S1-1200C
Dimensions: 1200 x 650 x 1050 mm. Bowl size: 505 x 505 235 mm. Center bowls, drainer space to the left and right. Bowl type: Fabricated.
-
SS-S1-1200L
Dimensions: 1200 x 650 x 1050 mm. Bowl size: 505 x 505 235 mm. Center bowls, drainer space to the right. Bowl type: Fabricated.
-
SS-S1-1200R
Dimensions: 1200 x 650 x 1050 mm. Bowl size: 505 x 505 235 mm. Center bowls, drainer space to the left. Bowl type: Fabricated.
-
SS-S1-1500C
Dimensions: 1500 x 650 x 1050 mm. Bowl size: 505 x 505 235 mm. Center bowls, drainer space to the left and right. Bowl type: Fabricated.
-
SS-S1-1500L
Dimensions: 1500 x 650 x 1050 mm. Bowl size: 505 x 505 235 mm. Center bowls, drainer space to the right. Bowl type: Fabricated.
-
SS-S1-1500R
Dimensions: 1500 x 650 x 1050 mm. Bowl size: 505 x 505 235 mm. Center bowls, drainer space to the left. Bowl type: Fabricated.
-
SS-S1-1850C
Dimensions: 1850 x 650 x 1050 mm. Bowl size: 505 x 505 235 mm. Center bowls, drainer space to the left and right. Bowl type: Fabricated.
-
SS-S1-1850L
Dimensions: 1850 x 650 x 1050 mm. Bowl size: 505 x 505 235 mm. Center bowls, drainer space to the right. Bowl type: Fabricated.
-
SS-S1-1850R
Dimensions: 1850 x 650 x 1050 mm. Bowl size: 505 x 505 235 mm. Center bowls, drainer space to the left. Bowl type: Fabricated.
Fixing options for catering sinks.
40mm diameter round legs set
41 x 41mm square legs set
41 x 41mm square gallows bracket with removable front legs. 355100 - 40 x 40mm square gallows bracket with detachable front leg
Cantilever bracket for hospital type floors with rounded corners.
