Medical mixers

Medical elbow action wall mounted mixer

Euroeco Sequential single-lever basin mixer 1/2″ wall mounted medical mixer is suitable for commercial use. The ceramic cartridge is designed to provide less water with perfect flow thus saving on water. The mixer comes with adjustable flow rate limiter but not an adjustable temperature limiter. Adjustable minimum flow rate is 6 l/min. The swivel spout is lockable with flow straightener of 9 l/min. The spout has a projection of 256 mm which is suitable for most hospital surgeon scrub-up requirements. The elbow action lever is made from metal. The elbow action lever is 170 mm.  The inlet comes with standard S-unions with a width of 150 mm ±20 mm adjustable to each side. Minimum operating pressure is 1.0 bar or 100 kPa. Operation with un-pressurized storage heaters is not possible. If static pressure exceeds 5 bar, a pressure-reducing valve must be fitted. Avoid major pressure differences between hot and cold water supply

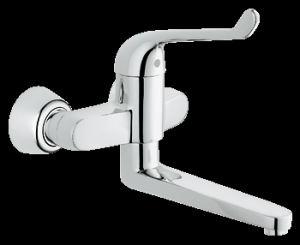

Medical elbow action wall mounted hospital mixer

Elbow action wall mounted medical mixer with 257 mm spout
GR-32793000 / GR-MEDM-ELB

Elbow action medical mixer

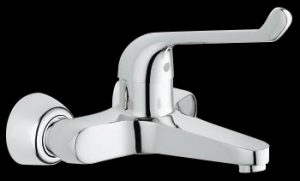

Elbow action wall mounted medical mixer

Elbow action wall mounted medical mixer with 204 mm spout
GR-32795000

elbow-action-medical-mixer-drawing-32795000

Medical elbow action wall mounted mixer with temperature control

NOTE: Full import, lead time 8-12 weeks

Grohtherm Ergomix is a wall mounted elbow action thermostatically controlled surgeon scrub-up mixer.  It comes with a comfortable metal 250 mm lever that is moved sequentially to increase water flow. The thermostat will limit the temperature automatically between 35°C and 45°C.  The spout can be swiveled 100° and has a projection of 238 mm. The internal mixer mechanism is made from industrial grade ceramic designed for heavy use.  The unit can be disinfected by activating the disinfecting mode which should be done at least once a month. Flow is limited to 9 l/min.  The unit also comes with non-return valves and dirt strainers for extra hygiene.

Surface mounted thermostatic mixers are designed for hot water supply via pressurized storage heater and utilized in this way provide the best temperature accuracy. With sufficient power (from 18 kW or 250 kcal/min) electric or gas instantaneous heaters are suitable. Thermostats cannot be used in connection with low pressure storage heaters. All thermostats are adjusted in the plant at a flow pressure on both sides of 3 bar.  If temperature deviations should exist due to special installation conditions, then the thermostat is to be adjusted to the local conditions (see Adjustment). At a flow pressure over 5 bar it is recommended that a pressure reducing valve be fitted in the supply line.

wall-mounted-thermo-medical-mixer-34018000

GR-34018000 / GR-MEDM-ELB-TH

Diagram elbow action medical mixer

Technical specifications of the thermostatically controlled medical elbow action mixer.
ParameterValue
Minimum flow pressure1 bar
Max. working pressure10 bar
Recommended flow pressure1 - 5 bar
Test pressure16 bar
Flow rate at 3 bar flow pressureapprox. 8 l/min
Max. water temperature at hot water inlet70 °C
Recommended max. stored temperature (energy saving) 60 °C
Thermal disinfection possibleYes
Hot water temperature at supply connection min higher than mixed water temperature2 °C
Hot water connectionLeft
Cold water connectionRight
Minimum flow rate5 l/min

Cobra COB-508CD wall mounted elbow action medical mixer

The Cobra 508CD is an industrial wall mounted elbow action medical mixer. It is designed to be used in hospitals, clinics, doctors rooms and is even used in food processing factories. The long lever is designed so that the tap can be operated without your hands, which makes it so hygienic. The long lasting ceramic disc cartridge reduces maintenance and downtime. Ceramic cartridges also are less prone to leaking resulting in less water wastage. The elbow action lever is very easy to use: just move the arm to the left and mixer is closed, move of the lever to the right and the tap opens up, the more the lever moved to the right the more hot water is mixed with cold and temperature progressively increases. Swivel spout can be moved out of the way for full access to the bowl.

Cobra COB-508CD wall mounted elbow action medical mixer surgeon supplier

CO-508CD
Cobra wall mounted elbow action medical mixer

Cobra COB-515/055-21 wall mounted elbow action medical tap.

The Cobra COB-515/055-21 wall mounted elbow action medical tap is one of the most extensively used wall mounted medical taps used in Africa. It is found in hospitals, surgery rooms, clinics, sluice rooms, doctors surgery rooms and also factories where hands free tap operation is required. In general the left hand tap is for warm water and right hand tap is for cold water. A ¼ turn of each lever opens the tap fully. For extra durability and low maintenance the tap uses ceramic discs.The inlets are standard 15mm (½”) male inlets. The spout can also be moved to the left or to the right.  Extensive spares are available: Blue head part complete CO-S-21-CLOCK. Red head part complete CO-S-21-ANTI. Blue head part only CO-S-21-1CLOCK. Red head part only CO-S-21-2ANTI. Swan neck swivel outlet CO-S-044. Elbow connections CO-S-055-15. Aerator CO-C-M22X1.

Cobra COB-515-055-21 wall mounted medical elbow tap

CO-515-055-21
Wall mounted elbow action medical tap

Cobra COB-515-21 deck mounted elbow action medical tap.

Elbow action medical tap with ¼ turn ceramic disc and pillar type mixer with swivel outlet. Standard ½in BSP male connection inlets. Made according to SANS 226 TYPE 2. The tap includes Swivel spout can be moved out of the way for full access to the bowl. For a water saving option simply buy and install a pressure compensating flow restrictor (P-WS/6, P-WS/6-NOLIME). The unit is made from brass and chrome plated. Spares are also available: Blue head part complete CO-S-21-CLOCK. Red head part complete CO-S-21-ANTI. Blue head part only CO-S-21-1CLOCK. Red head part only CO-S-21-2ANTI. Swivel outlet CO-S-041. Aerator CO-C-M22X1.

Tap is often used on MTS post mortem tables and in certain installations on catering sinks when they are used in laboratories.

cobra cob 515-21 deck mounted elbow action medical tap hospital

CO-515-21
Deck mounted medical elbow tap

Elbow action medical pillar tap (Hot and cold)

The 480HL comes in two versions, hot or cold. The hot water is installed on the left of a basin and the cold water pillar tap to the right.  These are 15 mm taps and works within 3 and 6 bar pressure. It is highly recommended to install a pressure regulating valve to control the pressure.  A dirt strainer is also recommended to ensure that the cartridges do not leak due to grit in the water.

Medical elbow action pillar tao

Medical elbow action basin pillar tap.
Hot: WC-480HL-RD
Cold: WC-480HL-BL

Medical elbow action pillar tao

Medical pillar tap with extended elbow action levers

WC-480HL-BL Medical elbow action tap

WC-480HL-BL Closed

WC-480HL-BL Medical elbow action tap

WC-480HL-BL Open

Medical elbow action basin tap showing inlet type fitting

WC-180HL Range of taps. Inlet is 15 mm. Most braided pipes will fit this tap.
