Double bowl preparation sink “S1P1”  Stainless steel

Specifications for the preparation sink

The Double bowl preparation sink (Franke model “S1P1”)  is manufactured from grade 304 18/10 stainless steel 1,2 mm thick with a 150 mm high integral splash back to the back and 50 x 10 mm turn down with a beaded edge on the remaining sides. The preparation catering sink’s standard bowl size is 500 x 500 x 230 mm deep and a fabricated pot sink bowl 760 x 460 x 380 mm deep with 40 mm waste outlets. The underside of the sink is sprayed with vermin proof bitumastic sound deadening and supported with a 30 x 30 x 3 mm framework and galvanized mild steel backing sheet. Unit fixed 900 mm high from the top of the front apron to the finish floor level with anchor bolts (bolts specified elsewhere). These sinks can be used as freestanding units with either round or square legs or they can be fixed to a wall with gallows brackets which come with a detachable front leg. These units can also be supplied without any fixing options, to be used as drop-on units mounted on top of cabinets.Please refer to fixing table for fixing options. Lead time for manufacturing is at least 26 working days on order.

Features of the “S1P1” preparation sink

  • Grade 304 (18/10) Stainless Steel 1.2 mm gauge
  • Fully sound deadened with galvanized backing sheet
  • Hospital bead to prevent spillage
  • Two different sized bowls
  • 1 x 57 L Bowl capacity
  • 1 x 133 L Bowl capacity

Optional accessories

  • Stainless steel or mild steel galvanized solid under shelf
  • Stainless steel  or mild steel galvanized slatted under shelf
  • Non-standard sizes upon request
  • Splash backs to ends available on request
S1P1 combo catering sink table models
Order codeNew/old codeLengthWidthBowl position
S1P1-1850L2620013 / 3529501850 mm650 mmLeft hand
S1P1-1850R2620014 / 3529521850 mm650 mmRight hand

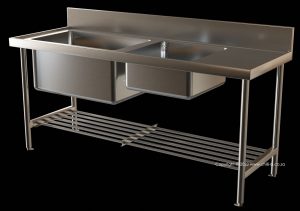

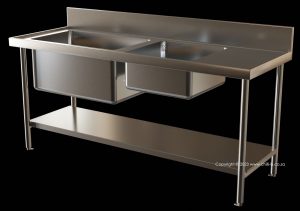

S1P1 Double bowl preparation sink



Stainless steel preparation sink diagram side

Top diagram of the preparation sink
