Wall and Floor Mounted Train Toilet Pan in stainless steel

Train toilet: Heavy Duty Wall and Floor Mounted WC Pan 650 x 438 x 450 mm high. The stainless steel pan is manufactured from Grade 304 (18/10) Stainless Steel with a 1,2 mm gauge. The toilet pan is manufactured with a pressed flushing rim and without the integral “P” Trap. The flushing pipe comes straight down with a 100 mm outlet diameter. 60 mm Back entry inlet pipe to suit a rubber flush inlet sealing bung. The pan is manufactured with a shroud, with internal flanges for securing the pan through the wall and into floor with anchor bolts. This toilet pan is also ideal for “container bathrooms”, buses and other movable coaches. The P-Trap must however be installed below the toilet which connects to the septic tank.

The train toilet does not come with a P-Trap. You must supply you own P-Trap section which can be made from either PVC or stainless steel. Lead time for manufacturing is 22- 26 working days.

Features :

  • Grade 304 (18/10) Stainless Steel in 1,2 mm gauge
  • Vandal resistant
  • Hygienic and durable

Stainless steel train toilet

Product code: 0084-111911
The P-trap must be supplied lower into the train chassis.

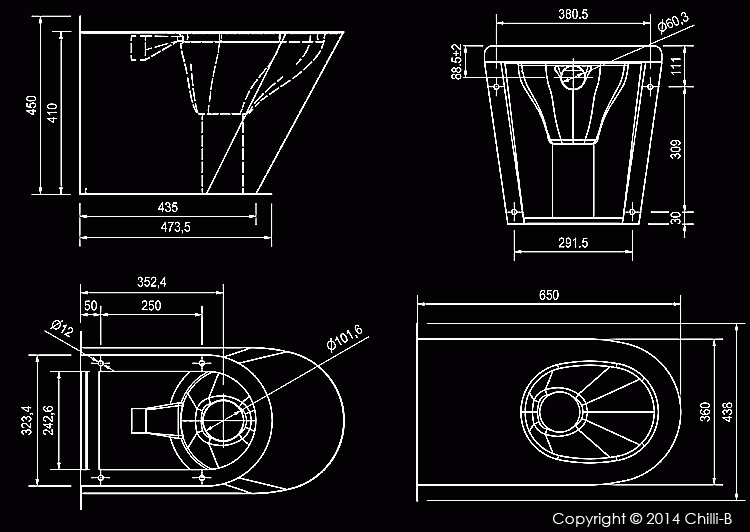

train-toilet-diagram
