Stainless steel squat pan

Stainless steel squat pan

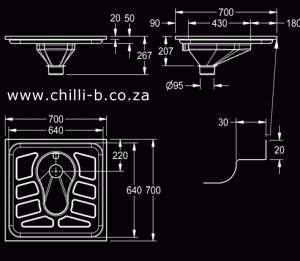

Stainless steel Squat pan specifications

The squat pans are manufactured from Grade 304 (18/10) Stainless Steel ,1,2 mm gauge with the foot plate and flush bowl pressed into one piece. The foot plate tray is pressed in raised pattern on both sides and in front of the flush bowl. The Stainless steel squat pan is fitted with a rear entry flushing spreader that will self seal with 41 mm flushing pipe, waste outlet with a 100 mm external diameter, suitable for fitting to a standard 100 mm PVC or cast iron waste connector. Stainless steel squat pan available in:

  • F-SQUATPAN-700: 700 x 700 mm (2540077)
  • F-SQUATPAN-740: 740 x 740 mm (2540076)
  • F-SQUATPAN-610: 610 x 500 mm (2540146)

Features

  • Grade 304 (18/10) Stainless Steel, 1.2 mm gauge
  • Hygienic pan cannot chip or crack
  • Designed for the highest level of anti-vandal resistance
  • Heavy duty construction external surfaces 1.2 mm gauge
  • Fully pressed design with raised tread plates
  • Concealed back entry flush pipe inlet suitable for surface mounted or concealed flush valves, low or high level cisterns
  • Supplied with flushing spreader
  • Flushes with 9 Liters Low Level Cistern (to be ordered separately)

Optional Extras:

Also available with High level Stainless Steel cistern with Supa Flush Valve and 41 mm diameter Stainless Steel flush pipe. Flush valve mechanism (Optional):

  • Walcro W-550SP 20mm BSP exposed lever operation with extended chrome pipe and floor/back entry connections or
  • Walcro W-106SP 25mm BSP for exposed lever operation with extended chrome pipe and flow/back entry connections.
  • Hi-level or low level cisterns can also be used.

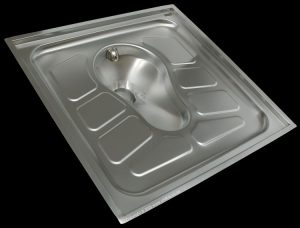

Stainless steel squat pan franke 2540076
F-SQUAT-740
Stainless steel squat pan. 740x740mm

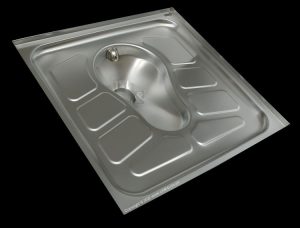

Stainless steel asian toilet franke CMPX504UTN 2540077
F-SQUAT-700
Stainless steel squat pan. 700x700mm

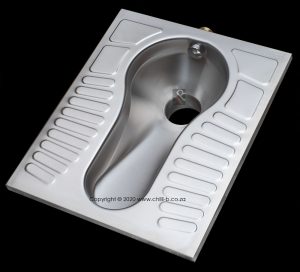

asian toilet squat pan eastern
F-SQ610
Small stainless steel squat pan

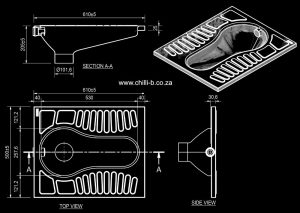

squat pan size
F-SQ610 squat pan dimensions

Exposed flush valve options

Walcro 550 URV Squat pan flush valve
W-550SP - Squat pan flush valve
Walcro 106B expossed toilet flushing valve
W-106SP - Low pressure squat pan flush valve
