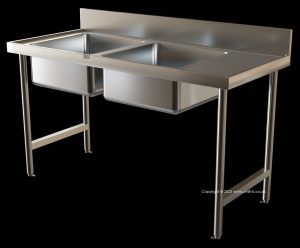

Double bowl catering sink “S2” Stainless Steel



Specifications of “S2” catering sink

Double bowl catering sink (Franke model “S2” ), bowl positioned at the end or center (please specify when placing orders or requesting quotes). Catering sink is manufactured from grade 304 stainless steel 1,2 mm thick with a 150 mm high integral splash back to the rear and 50 x 10 mm turn down with a beaded edge on the remaining sides. Sinks come with pressed 500 x 500 x 230 mm deep bowls with 40 mm waste outlets. The underside of the double bowl catering sink is sprayed with vermin proof bitumastic sound deadening and supported with a 30 x 30 x 3 mm framework and galvanized mild steel backing sheet. The double bowl catering sink unit can be fixed 900 mm high from the top of the front apron to the finish floor level with anchor bolts (bolts specified elsewhere). The catering sinks can be used as freestanding units with either round or square legs or they can be fixed to a wall with gallows brackets which come with a detachable front leg. These units can also be supplied without any fixing options, to be used as drop-on units mounted on top of cabinets.Please refer to fixing table for fixing options.

“S2” catering sink features

  • Pressed bowls 500 x 500 x 230 mm deep
  • 150 mm High integral splash back to the rear
  • Grade 304 (18/10) Stainless Steel 1.2 mm gauge
  • Fully sound deadened with galvanized backing sheet
  • Hospital bead to prevent spillage
  • 57 Litre Bowl Capacity

“S2” catering sink accessories

  • Stainless or mild steel galvanized solid under shelf

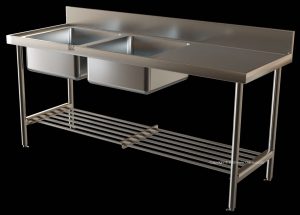

  • Stainless or mild steel galvanized slatted under shelf
  • Non- standard sizes upon request or splash backs to ends
S2 Catering Sink models
Order codeProduct code
Length X width X height (mm)Bowl position

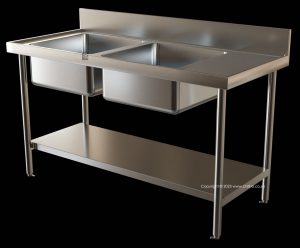

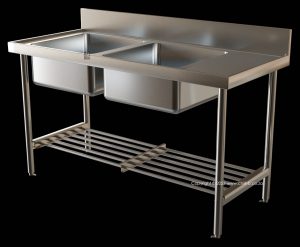

S2-1500L350036 / 2620005
1500x650x1050Left
S2-1500R353302 / 2620021
1500x650x1050Right
S2-1500C353304 / 2620021
1500x650x1050Center
S2-1850R353350 / 2620023
1850x650x1050Right

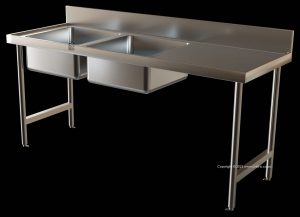

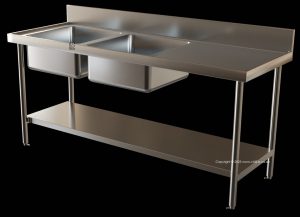

S2-1850L353356 / 2620024
1850x650x1050Left
S2-1850C353358 / 2620025
1850x650x1050Center

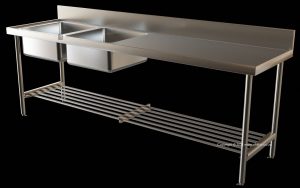

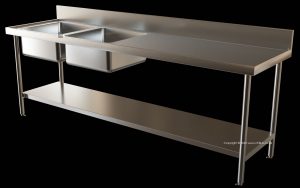

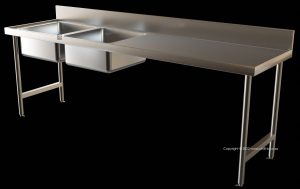

S2-2400L350032 / 2620004
2400x650x1050Left
S2-2400R350042 / 2620256
2400x650x1050Right
S2-2400C350046 2400x650x1050Center

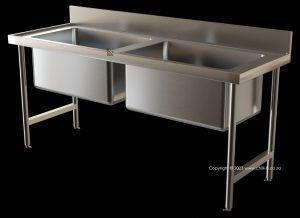

Double bowl stainless steel catering sink

double bowl catering sink measurements

Side view of the catering sink. Note the height of the work surface is 900 mm. With the splash back it is 1050 mm.

Double bowl stainless steel catering sink diagram top
