WB001 Stainless steel wall hung basin

WB001 Basin specification

Model WB001 Stainless steel wall hung hand basin, 535 x 420 x 150 mm deep. Unit to be manufactured from a high grade austenitic Stainless Steel, 0,8 mm gauge. Basin to include a pressed bowl 410 x 300 x 140 mm deep with a 40 mm waste outlet and 32 mm apron all round. Unit to be fixed to wall with pair of galvanized mild steel Eagle Brackets (Optional). Optional Tiling Key (please specify). Austenitic Stainless Steel contains high amounts of chromium and nickel and is the most corrosion resistant, ductile, and weldable type of stainless steel. It is used mainly for heavy duty work in commercial and industrial applications where durability and hygiene is of utmost importance

Features:

  • Basin one pieced pressed
  • Hygienic and vandal resistant
  • Available with optional tiling key
  • High grade austenitic Stainless Steel
  • Semi-pierced tap holes and soap recesses
WB001 single inset or wall hung stainless steel basin models
ORDER CODEPRODUCT CODE (old/new)DimensionsDescription
WB001325150 / 535 x 420 x 150 mmBasin only
WB001325000 / 535 x 420 x 150 mmBasin with tiling key
Eagle bracket300351 / 535 x 420 x 150 mmBrackets for wall mounting

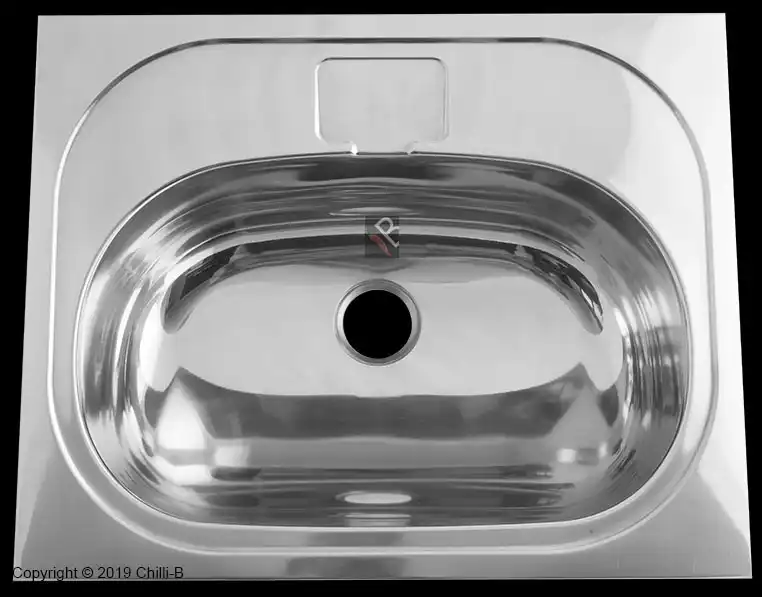

WB001 Surround inset or wall mounted stainless steel basin

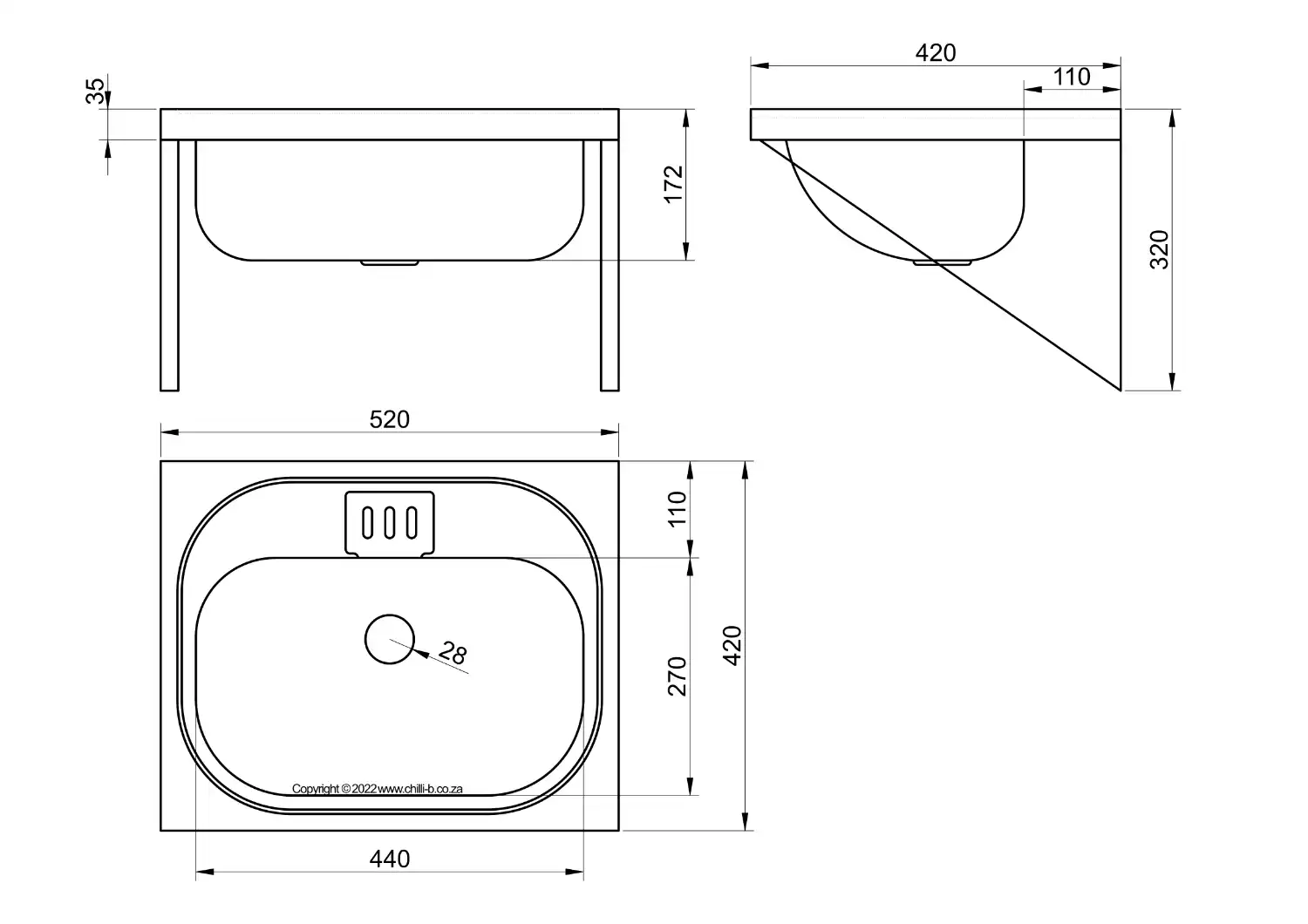

WB001 wall mounted stainless steel basin diagram



WB001 Wall mounting bracket

Eagle Brackets 408 x 319 mm to be manufactured from galvanized mild steel with two 6 mm holes to secure the unit to the wall. (Bolts elsewhere measured).

WB001 wall mounting bracket dimensions
