Oval B wall mount stainless steel basin

Oval B Wash Hand Basin specification :

Franke Model Oval B Wash Hand Basins, 420 x 336 x 130 mm deep. Unit to be manufactured from Grade 304 (18/10) Stainless Steel, 1,2 mm gauge. Unit to include a one piece pressed bowl, 360 x 280 x 130 mm deep with a 40 mm waste outlet, with a 30 mm splash back and 30 mm rounded apron. Basin to be supplied with 20 x 20 mm square mild steel (galvanized brackets) or Stainless Steel gallows brackets (optional, please specify). Basin to be fixed to the wall with 4 x 6 mm anchor bolts (bolts elsewhere measured). The Oval B is a shallow basin designed specifically for hand washing in ultra-hygienic conditions. The shallow basin allows supervisors to quickly spot unwanted objects lying in the basin which can be a health hazard or a source of germs. There is enough space in the basin corners for pillar taps or infra-red taps. Please ask your plumber to cut the correct diameter hole for your specific tap as we do not pre-drill tap holes in this basin. The Oval B has a satin finish compared to the Oval A and KA which have a high gloss polished finish.

Optional Extras: (Please Specify)

  • One or two tap holes punched
  • Brackets in Stainless Steel or mild steel galvanized

Features :

  • Grade 304 (18/10) polished Stainless Steel, 1,2mm gauge
  • Compact design suitable for wall surface mounting
  • Basin with pressed bowl
  • Hygienic and vandal resistant
Product codeModelDescription
2520028 / 357455FR-OVAL-B-INSBasin only
357451FR-OVAL-B-GBBasin with mild steel galvanized brackets
2520027 / 357454FR-OVAL-BBasin with stainless steel brackets

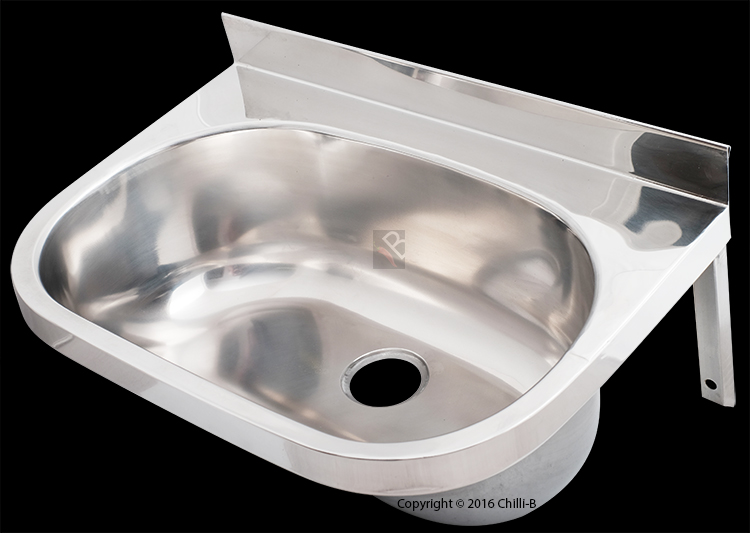

Oval B stainless steel wash hand basin

FR-OVAL-B with stainless steel gallows brackets

Oval B diagram

oval b and medical tap

Oval B installed in a washroom with elbow action medical tap for extra hygiene.

oval b

Installation of an Oval B with a wall hung medical tap
