DF stainless steel pedestal drinking fountain

Drinking fountain specification

The DF Pedestal Type Drinking Fountain with dimensions 400 x 400 x 920 mm high is manufactured from Grade 304 (18/10) Stainless. The unit is highly durable with stainless steel gauge of 1.2 mm (thickness of stainless steel plates). It includes a one piece pressed bowl with a 40 mm waste outlet and removable top section. It is supplied with a Bubbler OR Carafe Spout. In most cases only the bubbler is used especially in locations where vandalism is a problem. Unit to be supplied complete with a reinforced fixing flange at the bottom with a hole to fasten the fountain to a concrete base with 10 mm masonry bolts (see image). The bolts are not supplied.

  • NOTE: Excludes Fittings and Plumbing connections.
  • The Walcro 109 tap is similar to the Bubbler kit (2330286)
  • The drinking fountain does not cool water down, if you like chilled water you need to look at the Zip Water Chillers

Features :

  • Manufactured from Grade 304 (18/10) Stainless Steel, 1,2 mm gauge
  • Free standing pedestal type drinking fountain
  • Pressed bowl
  • Removable top section
  • Reinforced floor fixing flange.
  • Available with a Carafe Spout or a Bubbler as options
Drinking fountain optional items
UnitOrder codeProduct code
Drinking fountain base unitFR- DF2610001 / 352250
Bubbler kitFR- DF- BBLR2330286
Bubbler adaptor (copper)FR- DF- BBLR- ADAPT2330282
Carafe spoutFR- CARAFE2330287
Alternative bubblerWC- 109WC- 109
Stainless steel drinking fountain without taps or plumbing

FR-DF



Drinking fountain

drinking fountain tap

Walcro WC-109 bubbler

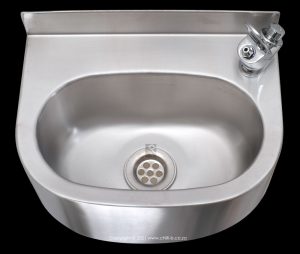

Note: Custom wall mounted drinking fountains can be manufactured on request.
